Technical features and options

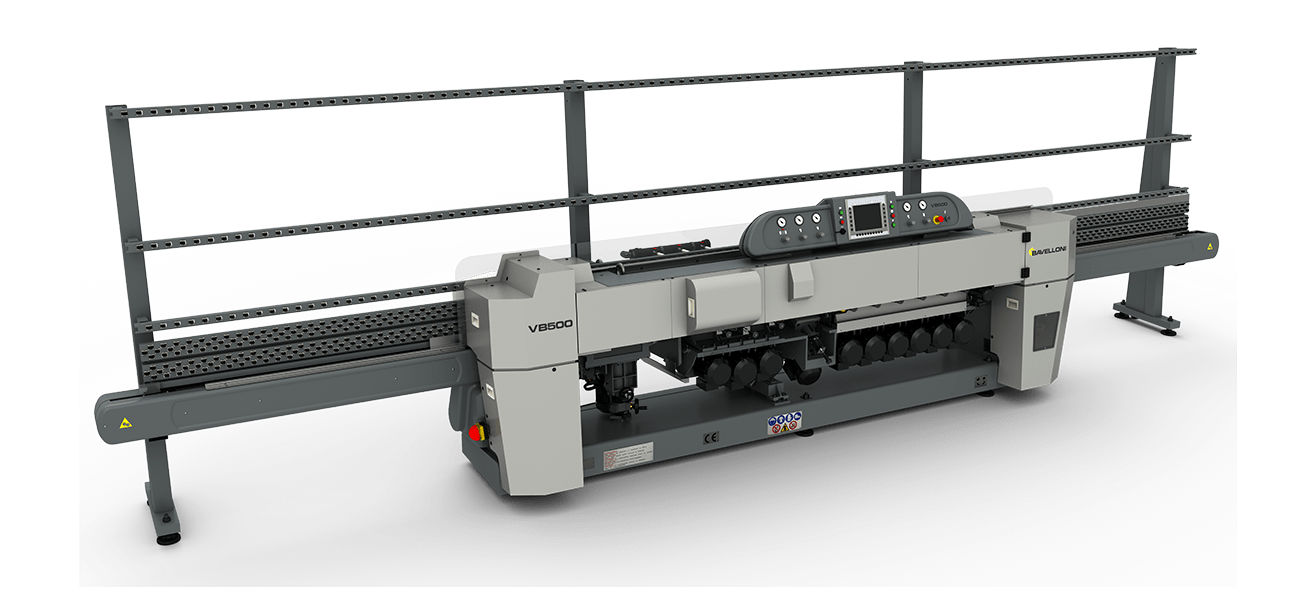

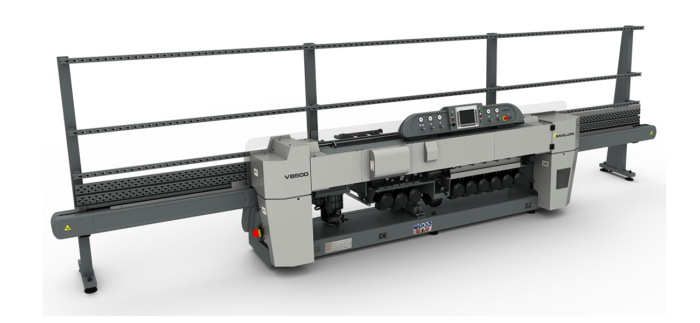

- VB 500 is the latest evolution of the range that for almost forty years has been regarded as the benchmark in the glass field. VB 500 has always been the choice of those companies producing bevelled glass at industrial levels. Productivity, quality and extremely low operating costs are the main characteristics of these models
- VB 500 is available in two configurations depending on how the edge remaining after bevelling is to be processed. The CNP model is equipped with three wheels for grinding the remaining edge with polished flat edge with arrises. The CNS version can grind the remaining edge with polished pencil edge shape using two peripheral wheels.

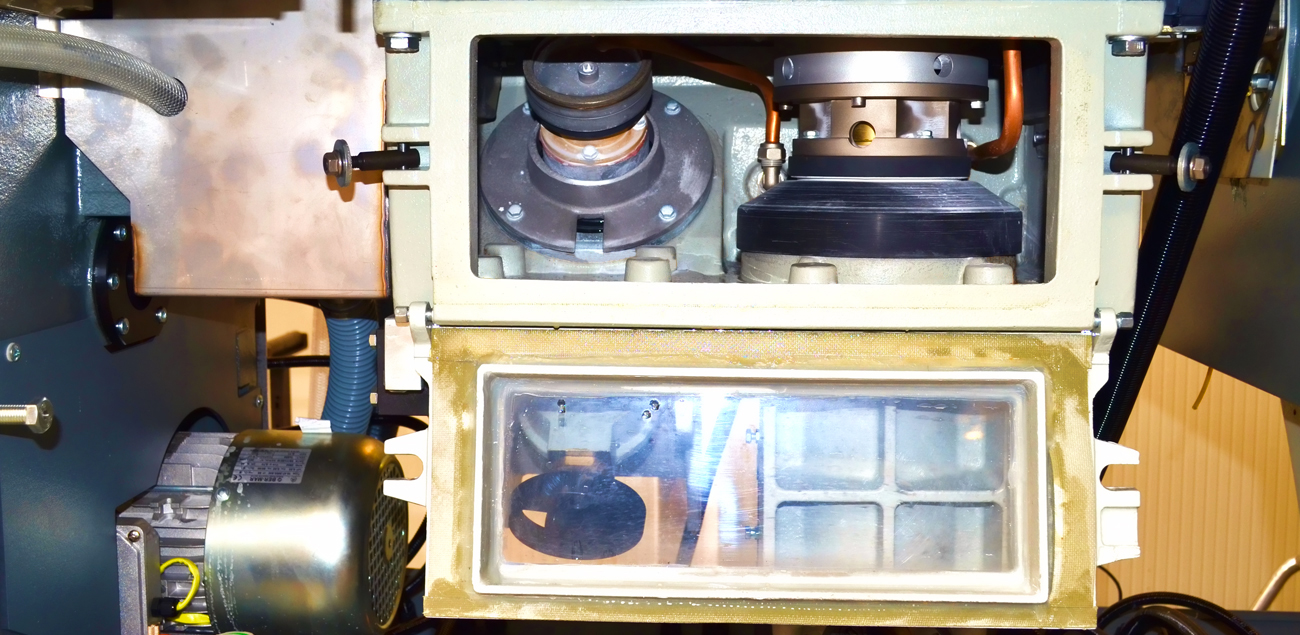

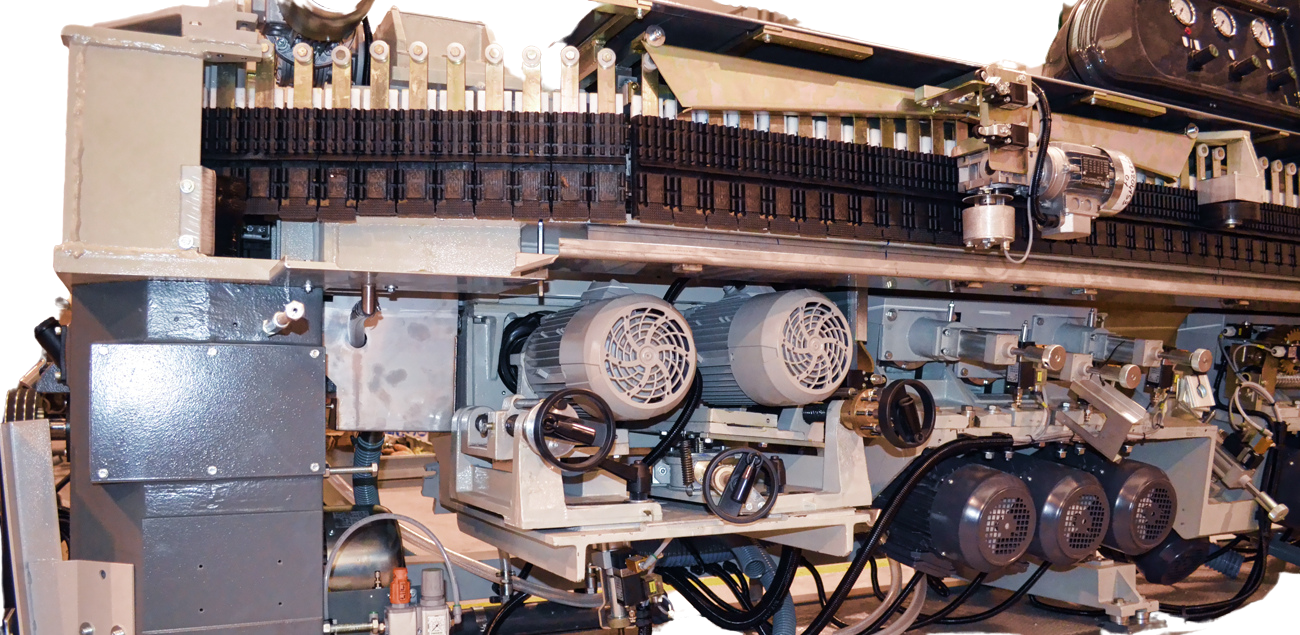

- Bavelloni’s patented conveyor, equipped with pads in cast-iron without the use of ball bearings, producing very high precision that is an essential element in bevel processing. The spindles are separated from the electrical motor by transmission belt eliminating vibrations and giving excellent grinding quality.
- The touch screen control panels of Bavelloni bevelling machines offer user-friendliness, flexibility and functionality. They can automatically perform calculations, report errors and prevent operation with incorrect parameters. The design of the work to be performed is displayed. Up to 99 different work configurations can be memorized; simple, double and triple bevels can be automatically set. The control panels offer an extremely precise digital visualization of the spindles absorption for perfect control of the machine.
- Bavelloni designed a unique device with extendable pads automatically activated by the control system for bevelling very small glass pieces.
