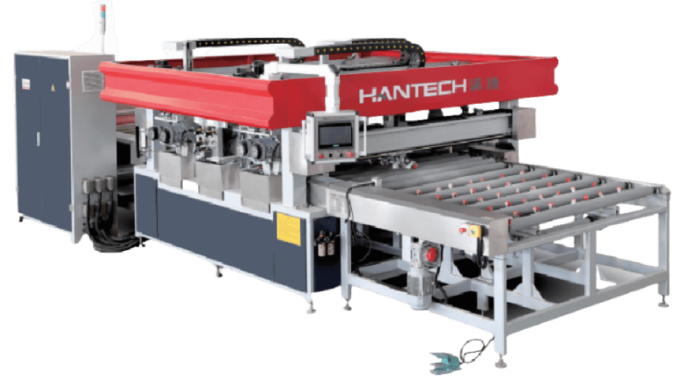

HORINZONTAL ARRISING MACHINE HANTECH SERIES E
Brand: Hantech
Horizontal glass sharpening machine type E (3-in-1).
Technical features and options
Construction: 3 bridges with 4 grinding heads (beveling + bottom edge + Low-E removal)
Features:
- The machine is equipped with 12 sets of servo systems as standard
- Standard IoT (Internet of Things)
- Maintenance updates, smarter remote control
- Patented 3-in-1 technology makes the machine more advanced and functional, capable of meeting various customer requirements
- Wheel configuration: 4 grinding geads, each head has 4 diamond wheels for he upper and lower bevels (optional resin wheels) = 3 diamond wheels for the bottom edge+ wheels for Low-E coating removal
- Thickness range : 4-12 mm (standard 3-8 mm lub 4-12 mm)
- Speed: beveling 12-40 m/min
- The glass dimensions depending on the model:
- HSZM16E – 270*650-1600*2500 mm
- HSZM20E – 270*650-2000*3000 mm
- HSZM25E – 270*650-2500*3000 mm
