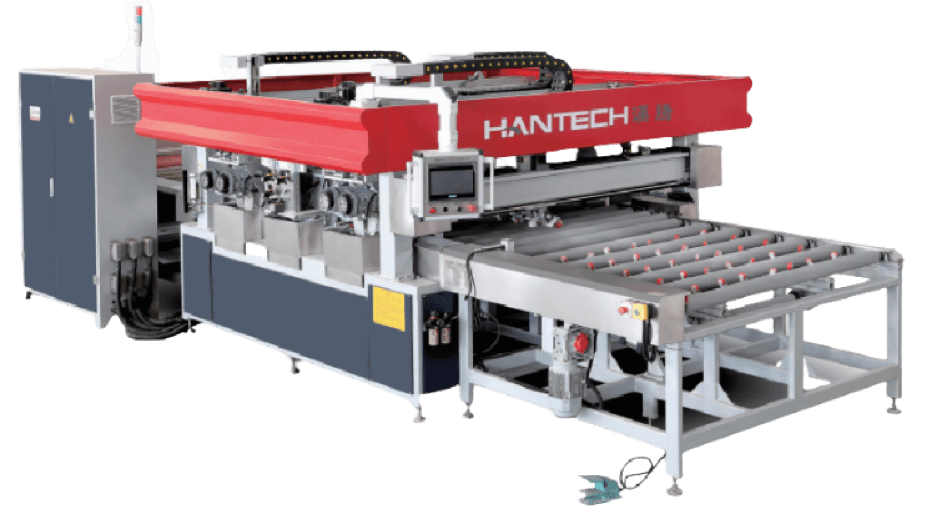

HORINZONTAL ARRISING MACHINE HANTECH SERIES F
Brand: Hantech
Automatic horizontal sharpening machine.
Technical features and options
- Six power transmission sections make the machine more efficient and faster
- Automatic glass size detection
- 11 sets of servo systems and 4 sets of step systems
- Wheel configuration: 4 grinding heads, each head has 4 resin wheels for the upper and lower bevels, and one wheel for Low-E removal
- Thickness range: 4-12 mm (standard 4-8 mm lub 6-12 mm)
- Speed: Beveling: 12-40 m/min
- Working height: 900-960 mm
- The glass dimensions depending on the model:
- HSZM16F – 250*650-1600*2500 mm
- HSZM20F – 350*650-2000*3000 mm
- HSZM25F – 350*650-2500*3000 mm
