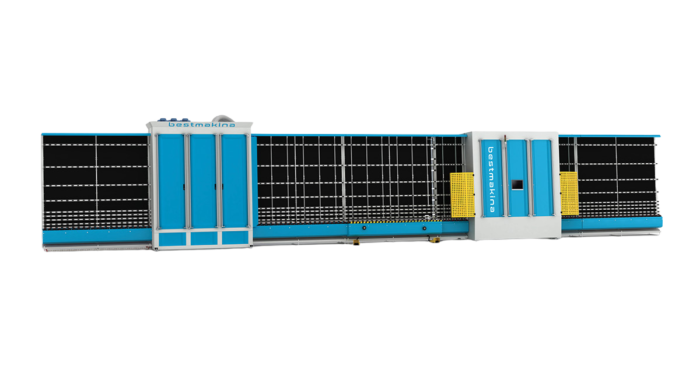

AUTOMATIC GLASS WASHING AND COMBINING LINE WITH PNEUMATIC PANEL PROCESS BESTMAKINA BWPE

• Welded rigid body made of A304 stainles steel and HRP quality steel
• Staple type , vibration free brushes for ɛ =0.01 quality Low-E glasses
• Special design for bearing system
• Rinsing with pure water
• Low energy consumption
• Lubrication free bearing system for brushes and conveyors
• 450 liters capacity stainless steel water tank
• Rinsing unit
• Ability of drying without touching the glass
• Stainless water filters
• Ability of manufacturing triple glasses
• High thickness precision for IG units with special processed panel press surface
• Ability of assembling IG units which are wider than the press unit with high vacuum capacity
• Inlet and outlet filters for water pumps
• Surfaces which contacts directly with water are made of stainless steel
• User friendly control panel
• Control of the whole line from one screen
• Ability of working manually and controlling of all functions
• Self adjustment system for glass thickness (max 19mm)
• Special design for conveyor wheels to move heavy glasses
• Brush shafts are balanced against vibration
• Individual spindles for each brushes
• Outlet filters for water pumps
• Easy cleanable water nozzles are positioned with a wide angle ofr drag effect
• Wiper rubbers and brushes between sections in the washing unit
• Water level control with magnetic safety sensors
• Temperature controlled stainless water tank
• Automatic water support system with float control
• Stainless water filters and water pumps
• Conveyor system without touching to side carrier wheels at dryni g section
• Valve system for energy saving when there is no glass in drying unit
• Stopping of brushes and water pumps when there is no glass in the washing unit or conveyor
wheels are stopped
• Drying unit with noise isolation and fan cabinet with heat control
• Outlet conveyor system with double speed
• Height and depth adjustable side and lower aligners at spacer bar assembling unit
• Homogeneous pressure distribution over press panel
• Ability of manufacturing double and triple glasses automatically
• Special anti-static and resistant against wearing laminated, dustproof cover over the press unit
• Adjustable press power and vacuum level system according to glass size
• Airbad system at fixed panel

It’s used for washing, drying glasses, automatic assembling and pressing with pneumatic system.

Options:

• Completely stainless washing cabinet
• Ø200 mm brushes
• Movable front brush for coated glasses
• Ability of manufacturing stepped IG units for structural glazing
• Tilting table at the end of press unit
• Glass outlet system with conveyor table and rotary table
• Additional racks before press unit
• Sand filter with 25 micron accuracy
• Water purification unit
• Supporters at downside of front moving side of pres unit.
