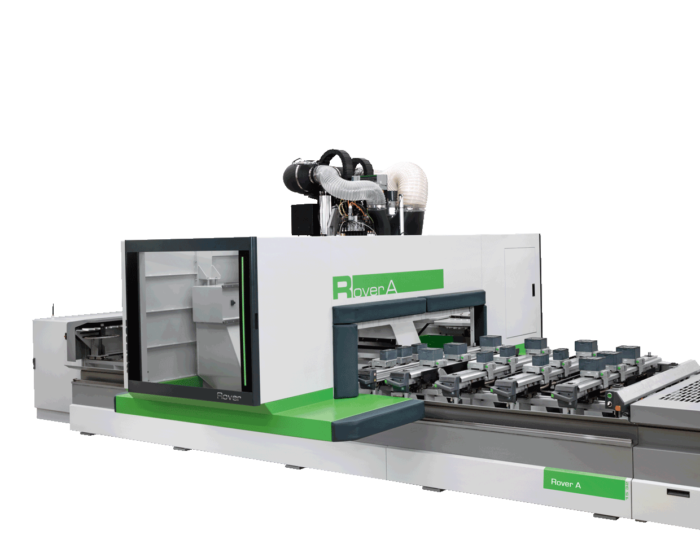

CNC POD & RAIL MACHINING CENTER BIESSE ROVER A 1542
Brand: Biesse
Rover A is the flexible new high-performance NC machining centre with a gantry structure, designed for customers who want to invest in a product that can process any type of element quickly but with excellent results. The Rover A boasts a quality-competitiveness ratio without equal on the market, making it the ideal investment.
Technical features and options
- Working fields (vertical electrospindle axis reference):
- X = 4140 mm,
- Y = 1560 mm for 4-axes unit, 1570 mm for 5-axes unit,
- Z = 200 mm z modules H74 mm / conf. 1A and 3A,
- Z = 245 mm z modules H29 mm / conf. 1A and 3A,
- Z = 230 mm z modules H74 mm / conf. 1B and 3B,
- Z = 275 mm z modules H29 mm / conf. 1B and 3B.
- Length of the working tables = 1500 mm,
- 8 ATS panel supports – 24 sliding bases,
- 8 Stop of the back line with a stroke of 115 mm and extension of 25 mm,
- 8 Stop of the middle line, positioned at 685 mm, with a stroke of 140 mm,
- 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
- 2 Additional side stops with a stroke of 140 mm (1 Lh + 1 Rh),
- 4 removable central stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
- 2 Additional central stops with a stroke of 140 mm (1 Lh + 1 Rh),
- Linear laser projector for pieces reference,
- 250 m3/h rotary claws vacuum pump,
- N. 2 Single movement Uniclamp module – H=74 mm. For pieces with thickness between 40 and 98 mm,
- N 12 Double movement Uniclamp module – H=74 mm. For pieces with thickness between 40 and 98 mm,
- Belt conveyor for chips and off-cuts removal,
- 16.5 kW (22.5 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling,
- Liquid chilling unit for liquid cooled systems,
- Boring head BH 17 L,
- Chain tool changer with 22 places at 180 mm centerdistance,
- HSK F63 Aggregate with 2 outlets for horizontal routings or sawblade maximum diameter 215mm,
- HSK F63 Aggregate with 3+1 spindles for horizontal borings, 22 mm spindle centerdistance,
- BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
- bSolid – External format import,
- bSolid – Surface Design,
- bSolid – 3 Axes machining,
- bSolid – 5 Axes Machining.
