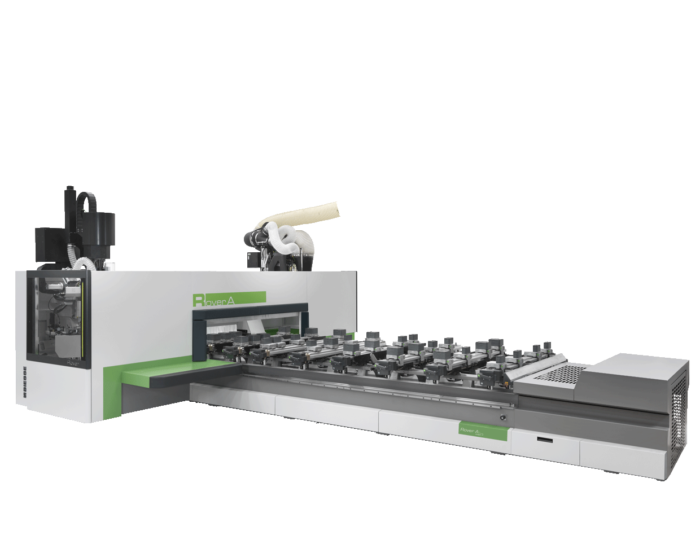

CNC EDGEBANDING MACHINING CENTER BIESSE ROVER A EDGE 1532
Brand: Biesse
Maximum bond strength, possibility of applying thin edges and 3D transparent edges, easy maintenance and cleaning of the panel during the processing cycle. Edging has always been based on the application of glue directly on the panel; Biesse has maintained this principle, applied universally on linear edgebanding, also on shaped edgebanding performed by machining centres.
Technical features and options
- Working fields (vertical electrospindle axis reference):
- X = 3140 mm,
- Y = 1560 mm,
- Z = 200 mm with H74 mm modules,*
- Z = 245 mm with H29 mm modules,*
* The Z values mentioned above are valid with tools with a maximum length of 170 mm.
- Edgebanding unit,
- 6 ATS panel supports – 24 sliding bases,
- 7 additional connections with quick coupling, to connect special jigs to the auxiliary vacuum system of the machine,
- 6 Stop of the back line with a stroke of 115 mm and extension of 25 mm,
- 6 Stop of the middle line, positioned at 685 mm, with a stroke of 140 mm,
- 6 Stop of the front line, positioned at 1348 mm, with a stroke of 140 mm,
- 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
- 4 removable central stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
- 250 m3/h rotary claws vacuum pump,
- 13.2 kW (17.7 HP) Electrospindle with HSK F63 adaptor and air cooling,
- 360° rotation interpolating unit – Torque C-Axis,
- Boring head BH 17 L,
- 6 positions Revolver Toolchanger, positioned on the Y axis carriage,
- Combined edge-trimming / edge-scraping / glue-scraping aggregate EF60C,
- BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
- bEdge – module for the application and finishing of banding material.
