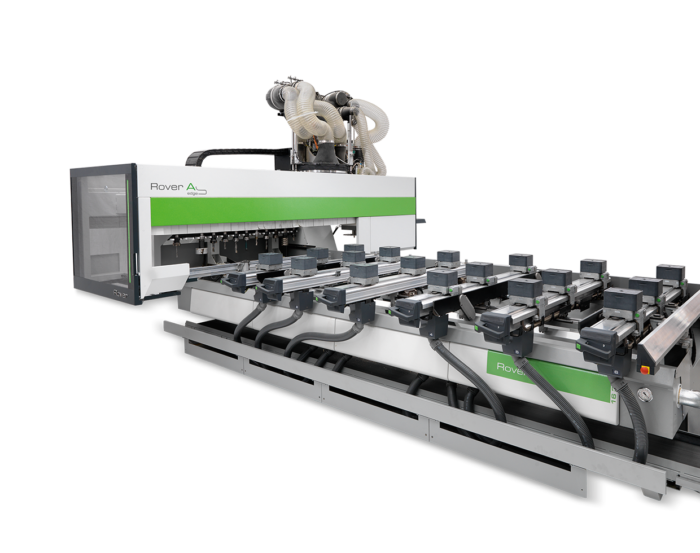

CNC EDGEBANDING MACHINING CENTER BIESSE ROVER A EDGE 1632
Brand: Biesse
Rover A Edge is an edgebanding machining centre that supports the machining of shaped panels, which can be edgebanded on a single, compact, high performance machine.
It is ideally suited to small and large joineries that need to manufacture either odd size products or standard size products in small batches.
Technical features and options
- Working fields for the main electrospindle – Right Y axis (*):
- X = 3.280 mm,
- X pendular = 1.100 mm,
- Y = 1.600 mm,
- Z = 200 mm,
- Working fields for edgebanding unit – Left Y axis (*):
- X edge = 2.300 mm,
- Y edge = 1.500 mm,
- Z edge = 60 mm, (no pendular machining)
- Edgebanding unit,
- 6 ATS panel supports – 24 sliding bases,
- SA working table (Set-Up Assistant). Manual working table positioning system aided by direction and position lights,
- 6 szt. Stop of the back line with a stroke of 115 mm and extension of 25 mm,
- 6 szt. Stop of the middle line, positioned at 670 mm, with a stroke of 140 mm,
- 6 szt. Stop of the middle line, positioned at 1230 mm, with a stroke of 140 mm,
- 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh) inclusive of the pneumatic system,
- 2 Additional side stops with a stroke of 140 mm (1 Lh + 1 Rh),
- 250 m3/h rotary claws vacuum pump,
- Belt conveyor for chips and off-cuts removal,
- 13.2 kW (17.7 HP) Electrospindle with HSK F63 adaptor and air cooling,
- 360° rotation interpolating unit – Torque C-Axis,
- Boring head BH 17 L,
- 16 positions Revolver Toolchanger, positioned on the X axis carriage,
- PUR Glues in granules. System for the use of PUR glues in granules,
- Edgebanding container for 2 coils, placed on the X carriage of the machine,
- Combined edge-trimming / edge-scraping / glue-scraping aggregate EF60B with complete equipment of tools with thickness 2,0 mm,
- BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
- bEdge – module for the application and finishing of banding material.
