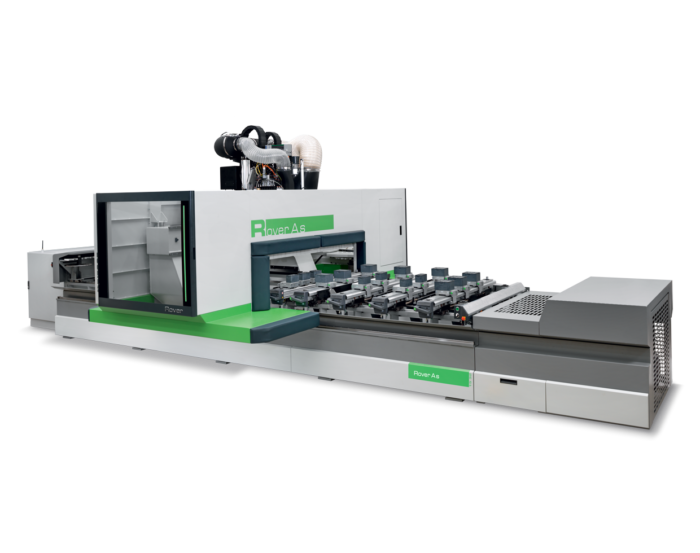

CNC POD & RAIL MACHINING CENTER BIESSE ROVER AS 1532
Brand: Biesse
Rover AS 15 is the new CNC processing centre offering top performance and flexibility. It’s designed for the customer who wants to invest in a product that can process any type of element quickly and economically.
Technical features and options
- Working fields (vertical electrospindle axis reference):
- X = 3140 mm,
- Y = 1560 mm for 4-axes unit, 1570 mm for 5 – axes unit,
- Z = 200 mm with H74 mm modules,
- Z = 245 mm with H29 mm modules,
- Length of the working tables = 1500 mm,
- 6 ATS panel supports – 24 sliding bases,
- Pneumatic loading systemdivided in 2 work areas in X,
- 6 Stops of the back line with a stroke of 115 mm and extension of 25 mm,
- 6 Stops of the middle line, positioned at 685 mm, with a stroke of 140 mm,
- 4 Side stops with a stroke of 140 mm (2 Lh + 2 Rh),
- 4 lifting bar supports for loading ease – H=74 mm modules,
- 100 m3/h rotary vanes vacuum pump with oil working,
- 12 vacuum module – size 132 x 146 x H74 mm,
- 6 vacuum module – size 132 x 75 x H74 mm,
- 6 vacuum module – size 132 x 54 x H74 mm,
- 13 kW Electrospindle with 5 interpolating axes, HSK F63 adaptor and liquid cooling – 20.000 RPM,
- Heat exchanger unit for liquid cooled systems,
- Boring head BH 17 L,
- 13 positions Revolver Toolchanger, positioned on the X axis carriage,
- Tool-holder with HSK F63 adaptor, equipped with a short flange for sawblade used on 5-axes unit,
- 300 mm sawblade for tool-holder with flange,
- Wired remote keyboard,
- BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
- bSolid – additional license.
