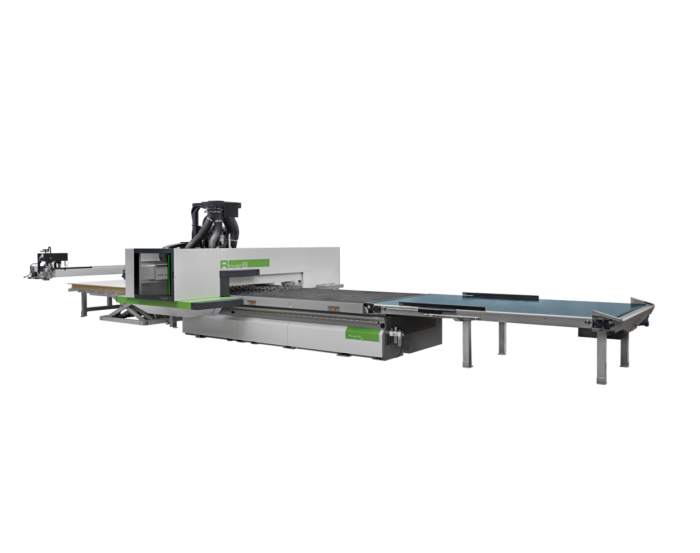

CNC NESTING MACHINE BIESSE ROVER B FT 2231 WITH LOADING AND UNLOADING
Brand: Biesse
The Rover B FT nesting machining centre raises the quality and productivity standards in this sector. Thanks to its structure and the variety of possible configurations, it can keep abreast of the work rhythm of medium and large companies for the production of pieces for every type of application.
Technical features and options
CNC machining center ROVER B FT 2231
- HFT or FTPLUS worktable dimension:
- X=3100mm,*
- Y=2205mm,*
* The dimensions indicate the distance between the stops in X and Y respectively; the maximum size of the panel that can be loaded automatically in Y is equal to the distance between the stops minus 5 mm.
- 16-zones Multizone vacuum system,
- N. 3 290 m3/h rotary claws vacuum pump,
- Automatic Loading and Unloading System (Sweeping Arm + Loading grippers),
- Scissor Lift – Size 2231,
- Shifting Outfeed Belt Conveyor – Size 2231,
- 19.2 kW (25.7 HP) Electrospindle with HSK F63 adaptor and liquid cooling,
- Liquid chilling unit for liquid cooled systems,
- 8 positions Revolver Toolchanger, positioned on the Y axis carriage,
- BH10 Boring Head,
- Rollers Hold-down unit with parking functionality – Size 22,
- BSolid 3D CAD-CAM program to design, simulate and manage the machining processes,
- bNest – Software module for nesting process applications,
- bNest – Graphic editor for manual editing of nesting results.
