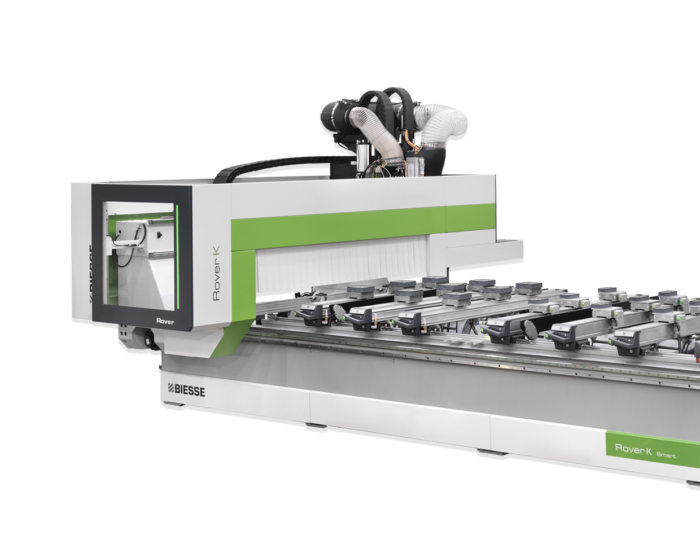

CNC POD & RAIL MACHINING CENTER BIESSE ROVER K SMART 1532
Brand: Biesse
Rover K Smart is a numerical control machining centre for artisan and small to medium sized businesses looking for simple solutions at affordable prices.
Technical features and options
- Working fields (electrospindle axis reference):
- X = 3200 mm,
- Y = 1560 mm,
- Z = 165 mm,
- Length of the working tables = 1500 mm,
- 6 ATS panel supports – L = 1540 mm – 18 sliding bases,
- 6 Stops of the back line with a stroke of 96 mm,
- Stop of the middle line, positioned at 1268 mm, with a stroke of 96 mm,
- 4 Side stops with a stroke of 96 mm (2 Lh + 2 Rh),
- 90 m3/h rotary vanes vacuum pump,
- 13.2 kW (17.7 HP) Electrospindle with HSK F63 adaptor & air cooling for BH 17 L,
- Boring head BH 17 L,
- 16 positions Revolver Tool changer, positioned on the X axis carriage,
- BSolid 3D CAD-CAM program to design, simulate and manage the machining processes.
