CNC MACHINE COMEC DRIVER 150 L

Categories: CNC, Wood

Brand: Comec

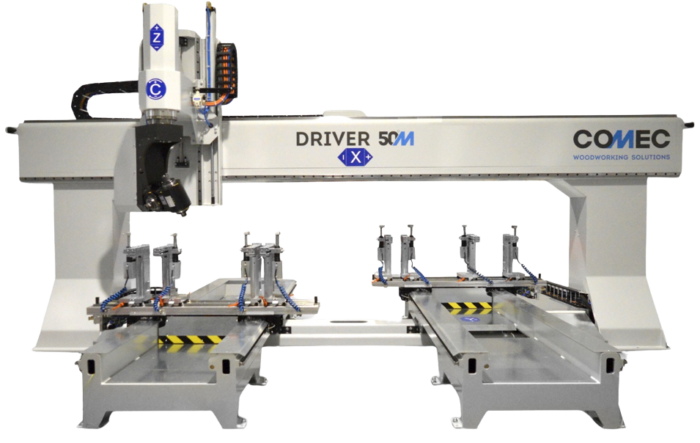

Cnc machining center with 6 axes with two working stations.

Technical features and options

Frame:

The structure is made of electrically welded steel sheet with a solid build, featuring a gantry and two independent working fields

Axis movement:

All axis movements occur on Bosch-Rexroth linear guides with circulating ball bearings or equivalent components.

Maximum movement/positioning speed: 70 m/min
Axis travel distances:
- X-axis: 4700 mm
- Z-axis: 980 mm
- Y1 and Y2 axes: 3300 mm

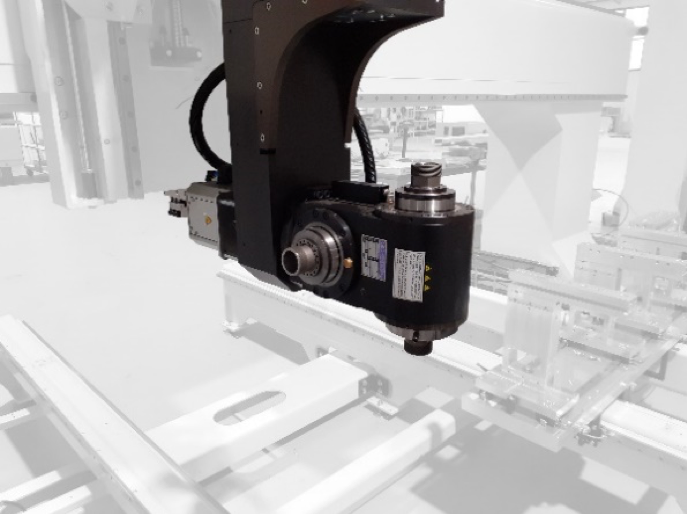

Rotational movements:
- B-axis (vertical plane rotation): Infinite rotation
- C-axis (horizontal plane rotation): ±362°

Axis movement – maximum speed:

X-axis: 70 m/min

Axis movement – travel distances:

X-axis: 4700 mm (passage between columns: 3100 mm)

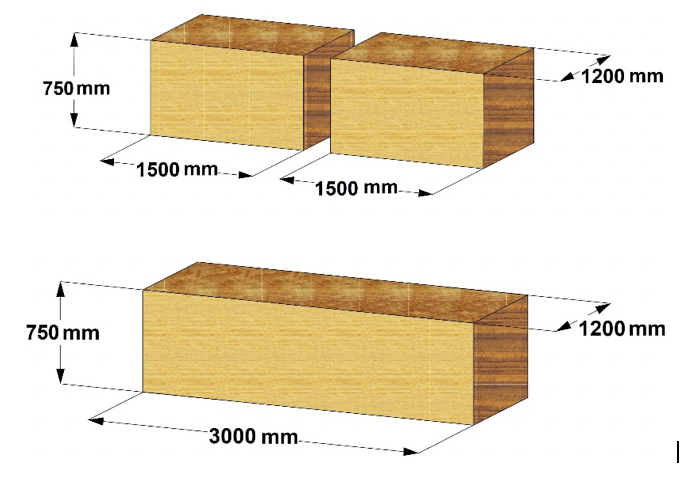

Working areas:

Maximum length:
- 3300 mm (single working field, 3-axis machining)
- 1500 + 1500 mm (two working fields, 3-axis machining)
Maximum width: 1200 mm (3-axis machining)
Maximum height: 750 mm (from the end of the vertical tool)
