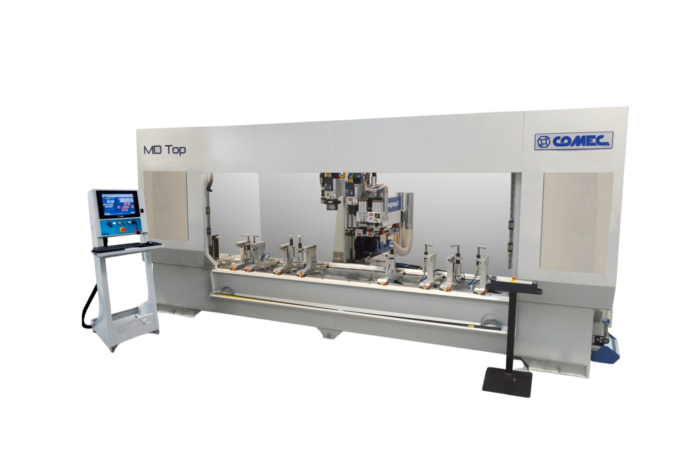

CNC MACHINE FOR NARROW PARTS COMEC MD TOP XL
Brand: Comec
The MD working centres are dedicated to the processing of elements with long shape made of solid wood, MDF, particle board and similar materials. They find their main appliance in the production of solid wood furniture (tables – cabinets and cupboards – sofas – furniture complements – etc.), beds and baby cribs, garden and outdoor furniture, doors and windows. MD working centres are generally used to carry out drilling, mortising and milling operations; according to the equipment and to the type of axes control, it is also possible to perform cutting off, surrounding/profiling, tenoning and similar processes. The wide range of versions and accessories, also realized upon specific request, permits to obtain an extreme personalization, in order to satisfy in the best way the real needs of any specific customer. According to the configuration of the machine, it is possible to work up to 5 sides of the piece.
Technical features and options
CNC WORKING CENTER with 3 or 4 axes
- Movable multi-spindle column,
- 2 independent working fields,
- Ideal for cutting, milling, or drilling operations on long shaped elements up to 3400 mm (1500+1500 working in tandem, alternating on two working fields),
- Capable of working on all faces of the elements in a single positioning,
- Fast, precise, and high-quality machining with guaranteed repeatability over time,
- Multi-spindle unit offers extreme flexibility of use and significantly higher performance than conventional working centers,
- Easy programming via the NC touch screen panel.
