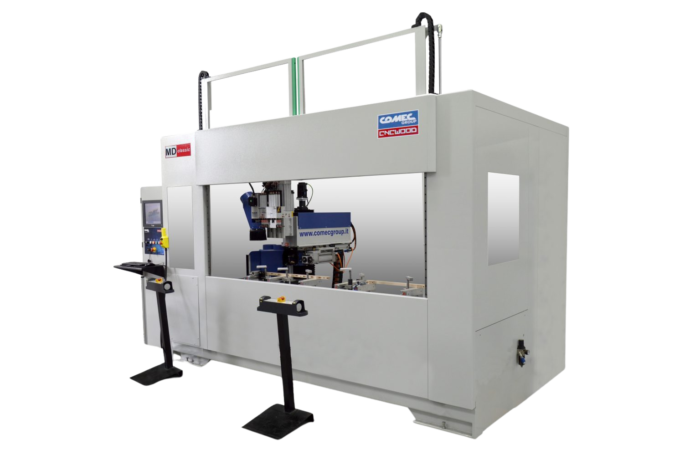

CNC MACHINE FOR NARROW PARTS COMEC MD CLASSIC.
Brand: Comec
The MD working centres are dedicated to the processing of elements with long shape made of solid wood, MDF, particle board and similar materials.They find their main appliance in the production of furniture like tables – cabinets and cupboards – sofas – furniture complements – beds and baby cribs-doors and windows, garden and outdoor furniture. MD working centres are generally used to carry out drilling, mortising and milling operations; according to the equipment it is also possible to perform cutting off, surrounding/profiling, tenoning and similar processes. The wide range of versions and accessories, also realized upon specific request, permits to obtain an extreme personalization, in order to satisfy in the best way the real needs of any specific customer. According to the configuration of the machine, it is possible to work up to all the 6 sides of the piece
Technical features and options
- Nominal Working Movement:
- X-axis: 2200 mm (or 1000 + 1000 mm in two working fields),
- Y-axis: 200 mm,
- Z-axis: 100 mm,
- Working Head with 3 axes controlled by CNC,
- Linear and circular interpolation on 3 axes (X, Y, Z),
- Maximum Head Positioning Speed: 50 m/min,
- Vertical Spindle Motors:
- 1 piece: Milling spindle with speed regulation: 5.6 kW with independent inverter, 12,000 – 18,000 rpm,
- 1 piece: Drilling spindle: 1.7 kW, 4,350 rpm,
- Horizontal Spindle Motors:
- 1 piece: Milling spindle, 5.6 kW, 12,000-18,000 rpm, speed regulation via independent inverter.
Sturdy, welded steel frame.
