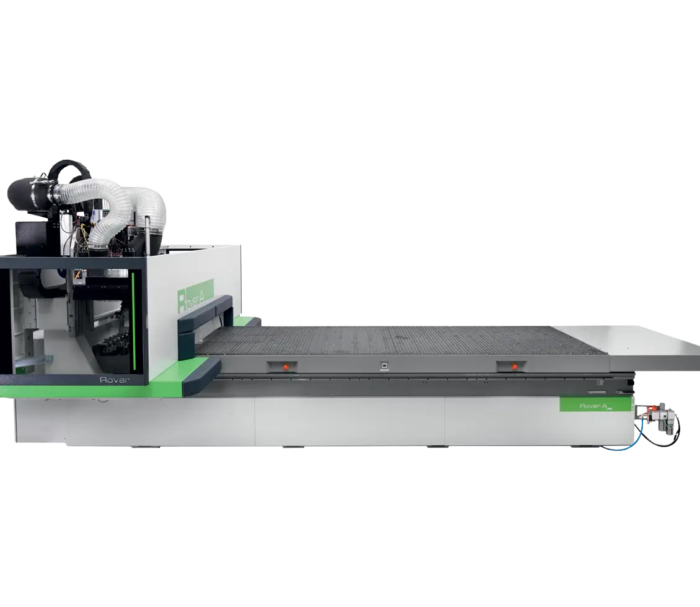

CNC NESTING MACHINING BIESSE ROVER A FT 1531
Brand: Biesse
Rover A FT is the new high-performance machining centre for Nesting operations. Compact and efficient, with a gantry structure, the Rover A FT offers top-of-the-range technology and guarantees optimum precision in every machining operation.
Technical features and options
Numerically controlled machining center ROVER A FT 1531 HFT or FT PLUS
- Worktable dimension:
- X=3100mm,
- Y=1560mm,
- Opening front door for machine safety coverage in replacement of the fixed panel installed in the basic machine,
- Wired remote keyboard,
- 8-zones Multizone vacuum system,
- Row of 6 additional stops positioned inside the FT worktable at about 470 mm from the front side and 2 additional side stops – stop stroke 140 mm,
- Sensorization of machine stops for the detection of lowered stops,
- 250 m3/h rotary claws vacuum pump,
- 13 kW (17.4 HP) operating unit with 5 interpolating axes, HSK F63 adaptor and liquid cooling,
- Liquid chilling unit for liquid cooled systems,
- Presetter for the measurement of the tool length with diameter up to 130mm,
- Additional Z carriage installed on rear Y carriage, for operating units with BHZ,
- BH13 boring head,
- Revolving toolchanger with 8 places installed on X carriage for 5-axes unit,
- bSolid 3D CAD-CAM program to design, simulate and manage the machining processes of the Biesse machining centers and boring machines,
- bSolid – 3D Engraving Module for engraving on bi-dimensional geometries (2D),
- B_NEST – Software module for nesting process applications,
- bNest – Graphic editor for manual editing of nesting results.
