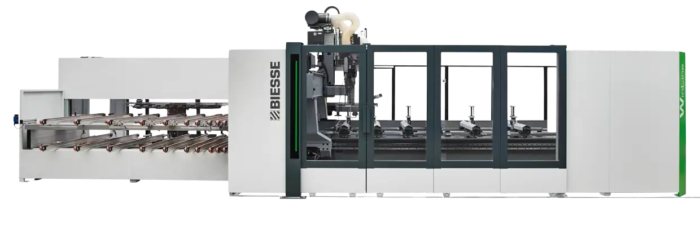

CNC POD & RAIL MACHINING CENTER BIESSE WINLINE 1667
Brand: Biesse
WINLINE is a modern and innovative machining center dedicated to the production of parts for windows and doors.
It performs complete work cycles, including loading/unloading and part positioning for each required operation, under direct NC supervision. This new level of integrated automation ensures the highest level of precision. The machine is a true "one-person factory" operated by a single operator, performing the entire process on each part without the need for additional passes, from planed components to elements ready for assembly and painting. This allows the operator time to carry out other tasks related to window construction: milling, dimensioning, assembling components on the clamping machine, fitting hardware, glazing, etc.
Technical features and options
- Movable gantry structure and double Y-axis with independent carriages,
- Element manipulator: loading, unloading, and clamp exchange,
- Automatic lubrication system,
- Multi-zone system,
- Automatic support arm movement for panels,
- Conveyor belt for chip and scrap removal,
- Numerical control,
- Personal computer with 3D video card and LCD display,
- Electrical equipment with air conditioning,
- Documentation,
- Maintenance devices,
- Remote keyboard,
- Industry 4.0 – integration with factory systems.
1.Numerical control of the WINLINE 1667 machining center:
- Support tables only.
2.Working area in X for support tables:
- Configuration 1: 6,502 mm,
- Configuration 3: 6,402 mm,
- Configuration 4/5: 6,350 mm,
- Pin tables + EPS tables.
3.Working area in X for pin tables:
- Configuration 1: 4,996 mm,
- Configuration 3: 4,685 mm,
- Configuration 4/5: 4,834 mm.
4.EPS working area:
- X = 3,934 mm,
- Y = 1,500 mm.
