PANEL SAW BIESSE SELCO WNA8

PANEL SAW BIESSE SELCO WNA8

Categories: ,

Brand: Biesse

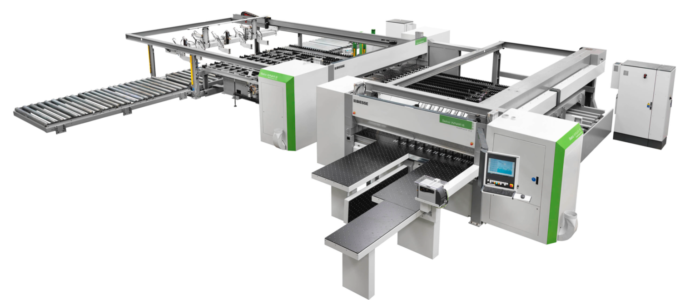

SELCO WNA 8 is a range of sizing systems with two fully independent cutting lines and automatic loading, ideal for the needs of major businesses that not only produce large batches but also focus on the dynamic, personalised production of small batches.

Technical features and options

  • Maximum length of rip cut:
    • 4500 mm for WNA 8 4500 x 2200 / 3000
    • 5900 mm for WNA 8 5900 x 2200 / 3000
  • Maximum length of cross cut:
    • 2200 mm for WNA 8 4500 / 5900 x 2200
    • 2700 mm for WNA 8 4500 / 5900 x 3000
  • Maximum saw blade projection 177 mm
  • Maximum gripper opening 160 mm
  • Maximum height of the pile of boards 830 mm
  • Minimum thickness loadable by lift table 10 mm
  • Maximum size of boards on lift table 4500 x 2200 mm
  • Minimum size of boards on lift table 1830 x 915 mm
  • Height of work table 1165 mm
  • Lift table weight capacity 5 t
  • Main saw blades motors power 30 kW/50 Hz (40 HP) 36 kW/60 Hz (48 HP)
  • Scoring saw blades motors power 2.2 kW/50 Hz (3 HP) 2.6 kW/60 Hz (3.6 HP)
  • Cross side aligner stroke 0 ÷ 2200 mm
  • Saw carriage speed (Brushless motor) 1 ÷ 160 m/min
  • Rip pusher speed (Brushless motor) 90 m/min
  • Cross pusher speed (Brushless motor) 90 m/min
  • Accurate vertical saw blade projection +/- 0.1mm

*Technical parameters may differ between the machine versions. All of the above to be confirmed by an authorised staff.
