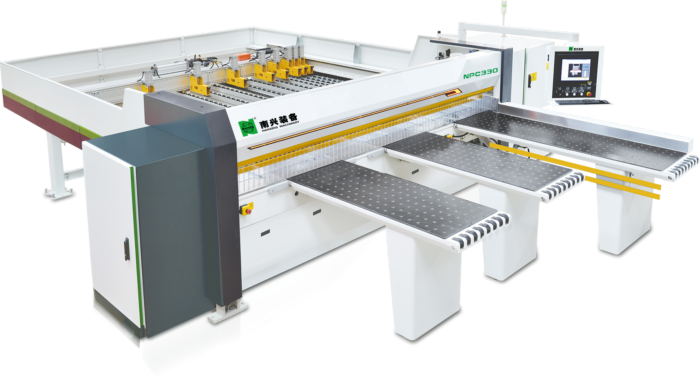

PANEL SAW NANXING NPC330
Brand: Nanxing
Nanxing NPC330 is a high-efficiency panel dividing saw designed to optimize cutting operations.
- Maximum cutting length: 3300 mm,
- Maximum cutting thickness: 90mm,
- Main saw motor power: 15 kW,
- Main saw rotation speed: 4500 rpm,
- Maximum diameter of the main saw: 400 mm,
- Rotational speed of the scoring saw: 4300 rpm,
- Maximum diameter of the scoring saw: 200 mm.
- The saw carriage is driven by a 2 kW engine and is moved automatically using a gear transmission, adjusting to the width of the panel, reducing the travel distance. The maximum cutting speed is up to 90m/min and the reversing speed is up to 120m/min. The pressure beam automatically adjusts to the total height of the panels, shortening the travel range and increasing efficiency.
- The software is easy to use and includes workflow management with detailed reports, simulating cutting patterns, displaying error messages, printing barcodes and much more. User-friendly HMI.
Technical features and options
- Maximum cutting length: 3300 mm,
- Maximum cutting thickness: 90mm,
- Main saw motor power: 15 kW,
- Main saw rotation speed: 4500 rpm,
- Maximum diameter of the main saw: 400 mm,
- Rotational speed of the scoring saw: 4300 rpm,
- Maximum diameter of the scoring saw: 200 mm.
- The saw carriage is driven by a 2 kW engine and is moved automatically using a gear transmission, adjusting to the width of the panel, reducing the travel distance. The maximum cutting speed is up to 90m/min and the reversing speed is up to 120m/min. The pressure beam automatically adjusts to the total height of the panels, shortening the travel range and increasing efficiency.
- The software is easy to use and includes workflow management with detailed reports, simulating cutting patterns, displaying error messages, printing barcodes and much more. User-friendly HMI.
