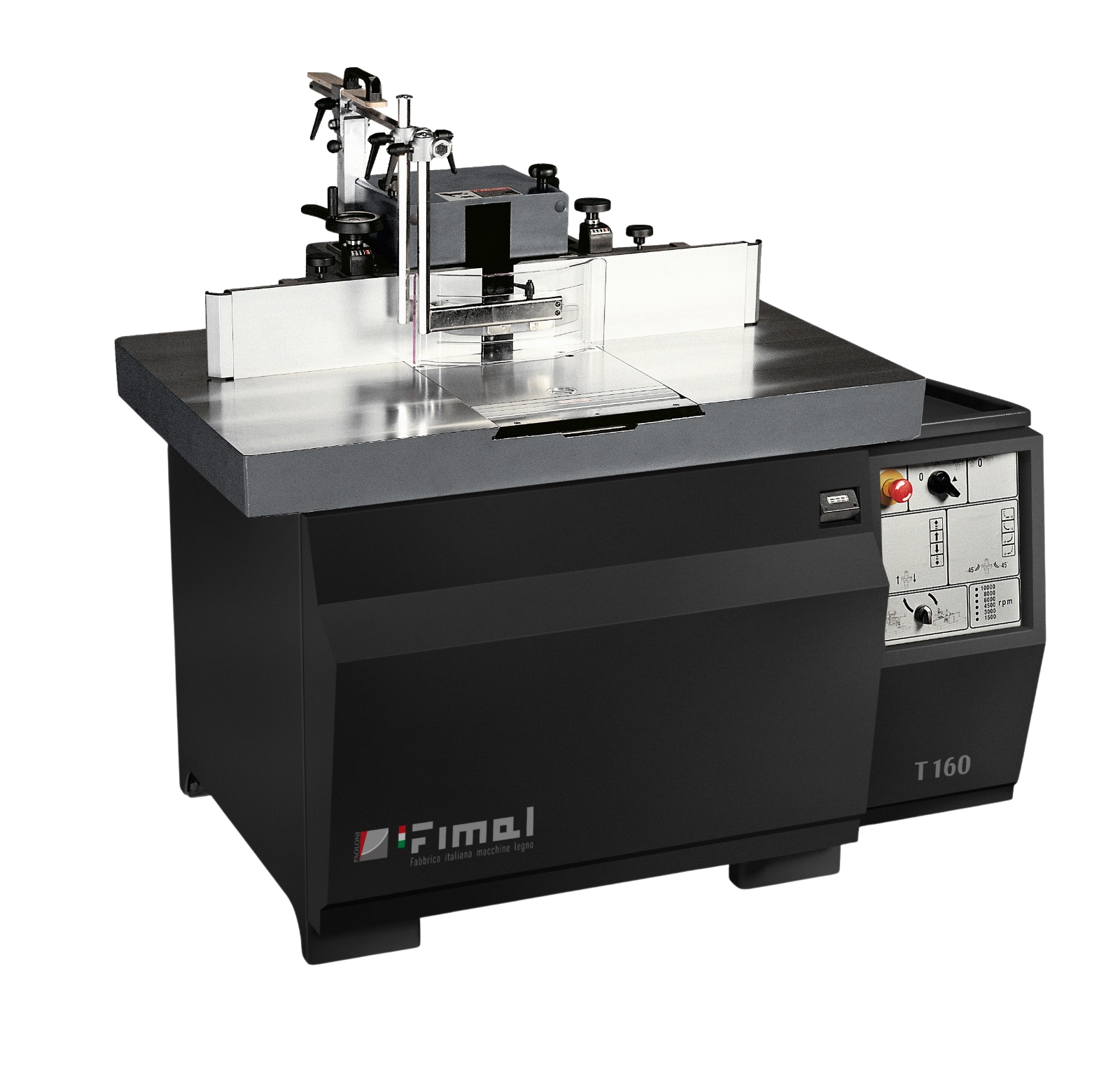

MILLING MACHINE FIMAL TX 160
Brand: Fimal
It is a modern milling machine with a tilting spindle, designed for precise and safe wood processing. Equipped with innovative solutions that enhance work efficiency, it offers quick adjustment and automation systems (patented), ensuring convenient operation and high repeatability of settings.
Technical features and options
- Table dimensions: 1200 x 780 mm
- Maximum table opening size (ø / h): 320 x 50 mm
- Maximum spindle height above table / stroke: 180 / 230 mm
- Spindle speed – ø on request: 1500–10000 rpm
- Spindle tilt range: -45 / +45 °
- Motor power: 5.5 kW
- Net weight: 460 kg
- Dust emission according to DIN 33893 — milling: 0.47 mg/m³
- Sound emission according to ISO 7960 — milling: 83.9 – 87.33 LA eg [dB(A)]
