Technical features and options
- Feed speed: 9 m/min
- Material thickness: 8 to 50 mm
- Edge thickness (edge banding):
- Without automatic feeder: 0.4 – 3 mm
- With veneer: max. 5 mm
- Max. diameter of edge banding reel: 800 mm
- Spacing between panels to be edge-banded: 600 mm
- Minimum material length: 110 mm
- Minimum material width: 95 mm
- Max. side support extension with rollers: 500 mm
- Compressed air pressure: 6.5 bar
- Compressed air consumption: 300 NL/min
- Dust extraction outlet diameters: 1x fi120 + 2x fi80
- Minimum air velocity for dust extraction: 20 m/sec
- Minimum dust extraction unit performance: 1550 m³/min
Logical functions controlled by the PLC, complete with:

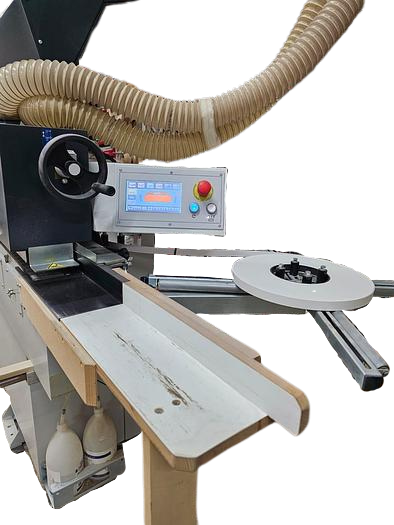

- Thermostatic control of adhesive with automatic standby mode and temperature indicator
- LED backlit buttons for selecting operational units
- Complete automation control of various workstations with an encoder located on the panel feeding system
- Diagnostic system with messages for machine use and maintenance
- Operational statistical data: total machine usage time, total and partial edging material usage meter
