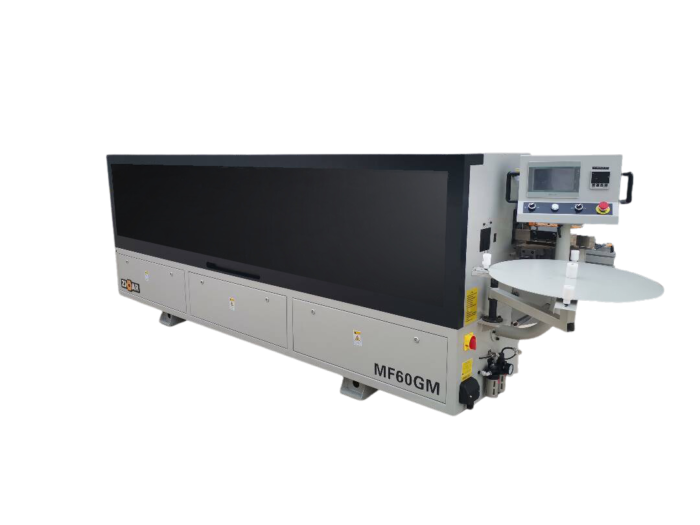

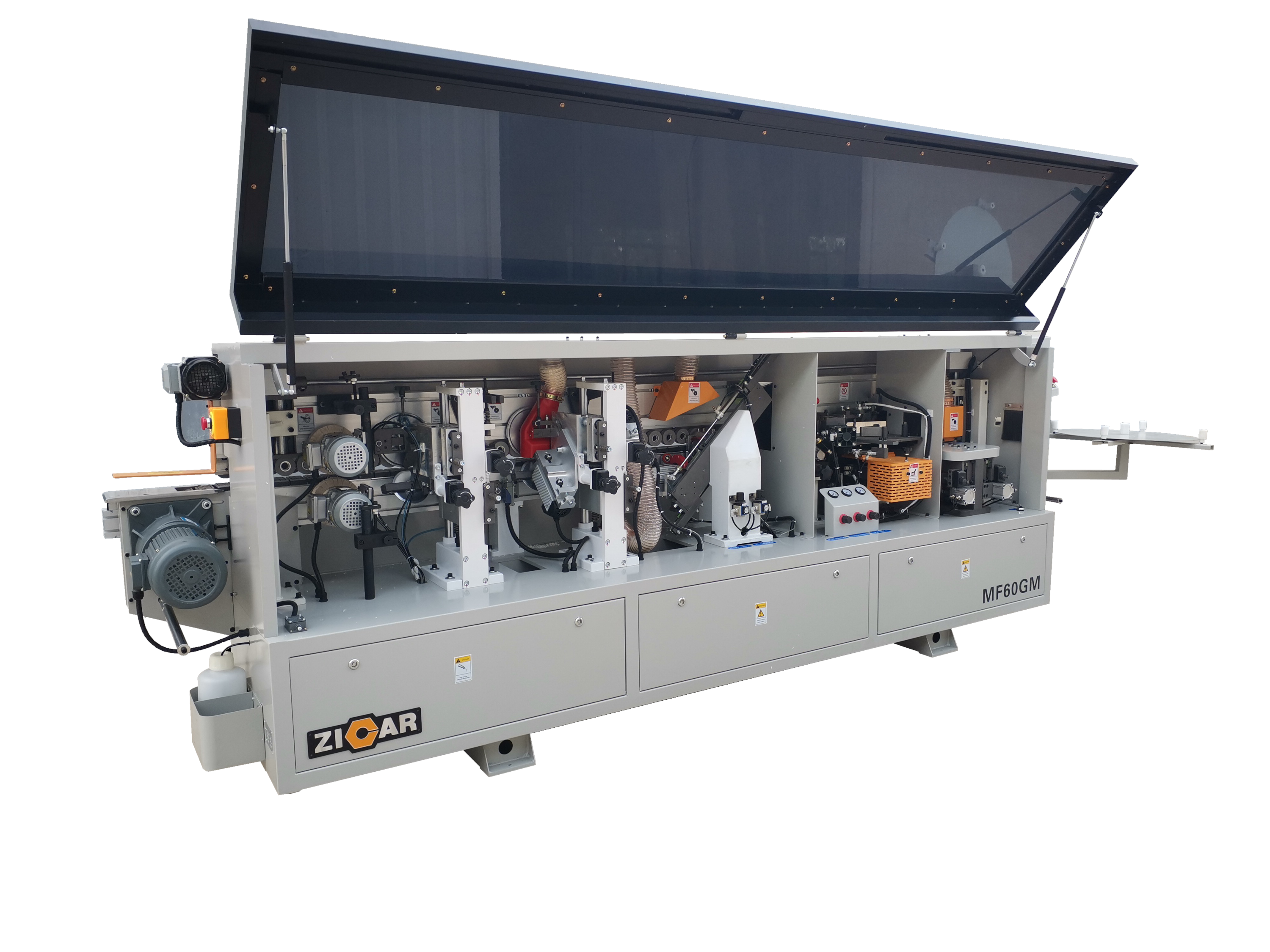

EDGE BANDER ZICAR MF60GM
Brand: Zicar
Zicar MF60GM compact edgebanding machine with pre-milling unit. Edgebanding machine with high feed speed: 16 m/min.
Technical features and options
- Element thickness 10 – 60 mm
- Edge thickness 0.4 – 3 mm
- Working pressure 0.7MPA
- Minimum element length 140 mm
- The minimum element width is 50 mm
- Feed speed 16m/min
- Total power 12 kW
- Overall dimensions 3850/740/1260 mm
- Net weight 1150 kg
Machine equipment – with ce standards:

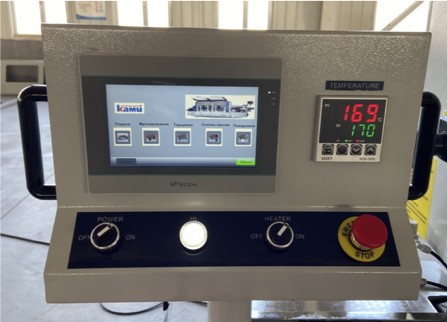

- Touch screen – industrial touch screen, easy to use with a clear interface
Generators:

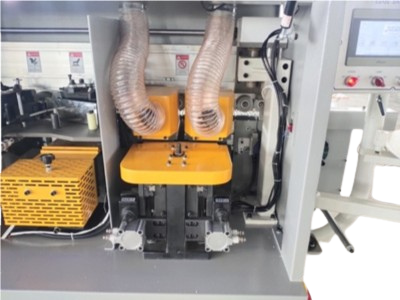

Pre-milling unit – (two diamond cutters)
-
Cutters remove excess material so that the edge will be perfectly finished
Engine power: 2 x 2.2 kW -
Glue unit (possibility of replacing the glue tank)
Glue tank covered with teflon with a large capacity (2 liters) -
Cutting unit – (two saws)
Linear guide at 45 degrees. Two motors with a power of 2 x 0.37 kW ensuring high precision in trimming the excess edge -
Milling aggregate – (properly finishes the top and bottom)
The sub-assembly precisely finishes off the excess rim. Two motors with a power of 2 x 0.75 kW -
Radial scraper unit
-
Polishing unit with a set of cleaning liquids and an automatic system
