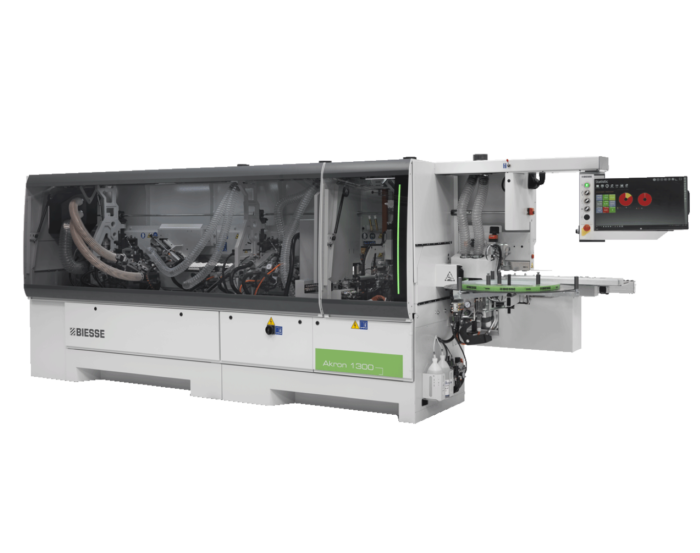

EDGE BANDING BIESSE AKRON 1330 A

EDGE BANDING BIESSE AKRON 1330 A

Categories: ,

Brand: Biesse

Single-sided edgebander for the application and processing of flat edge-banding material in coils and in strips.

Technical features and options

  • Description:
  1. Panel height: 10 – 60 mm,
  2. Height of edge-banding material: 14 – 64 mm,
  3. Thickness of edge-banding material in rolls: 0,4 – 3 mm,
  4. Thickness of edge-banding in strips: 0,4 – 5 mm,
  5. Panel length: 150 – 3200 mm,
  6. Track feed speed: 12 m/min
  • Pre-milling Unit RT02. Complete with 2 high frequency motors (1.8 kW each) at 12000 RPM,
  • Gluing Unit SP03,
  • End trimming Unit IT03 Complete with 1 high frequency motor (0.8 kW) at 12000 RPM,
  • Fine trimming Unit RF02 Complete with 2 high frequency motors (0.65 kW) at 12000 RPM,
  • Corner rounding Unit AR02 Complete with 2 high frequency motors (0.65 kW each) at 12000 RPM,
  • Edge scraper Unit RB02,
  • Glue scraper Unit RC02,
  • Brushing Unit SZ02. Complete with 2 motors (0.37 kW) at 2800 RPM.
