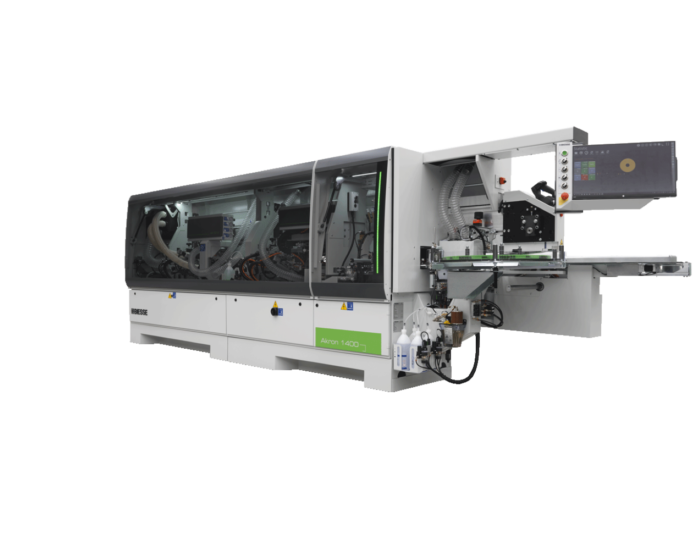

EDGE BANDING BIESSE AKRON 1440 A NC

EDGE BANDING BIESSE AKRON 1440 A NC

Categories: ,

Brand: Biesse

Single-sided edgebander for the application and processing of flat edge-banding material in coil and in strips.

Technical features and options

  • Description:
  1. Panel height: 10-60 mm,
  2. Height of edge-banding material: 14-64 mm,
  3. Thickness of edge-banding material in rolls: 0,4-3 mm,
  4. Thickness of edge-banding in strips: 0,4-12 mm,
  5. Panel length: 140-3200 mm,
  6. Track feed speed: 12 m/min.
  • Pre-milling Unit RT02. Complete with 2 high frequency motors (1.8 kW each) at 12000 RPM,
  • Gluing Unit VC-511,
  • End trimming unit IT70-S. Complete with 2 high frequency motors (0.8 kW each) at 12000 RPM, with saw blades,
  • Fine trimming unit RI-501. Complete with 2 high frequency motors (0.65 kW) at 12000 RPM,
  • Multifunction 2 motors corner rounding Unit AR02 E. Complete with 2 high frequency motors (0.65 kW each) at 12000 RPM,
  • Edge scraper Unit RB02,
  • Glue scraper Unit RC02,
  • Brushing Unit SZ02. Complete with 2 motors (0.37 kW) at 2800 RPM,
  • Nc Axis Package – Group Of Devices That Enable The Automation Of Machine Set-Up For Akron 1400,
  • Kit High Quality And High Productivity On Akron 1440. Belt Pressure Beam. The Top Presser Comprises A Rubber Belt With A Stain-Proof Coating.
