CRANE ELEPHANT C500
CRANE ELEPHANT C500 - Image 2

CRANE ELEPHANT C500

Categories: ,

Brand: Elephant

Profiled jib

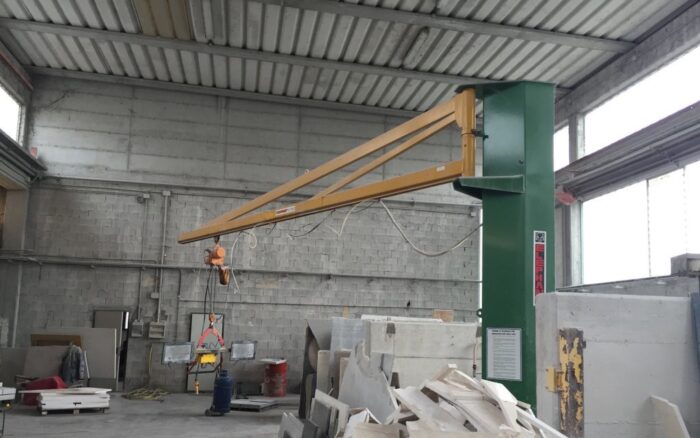

Column and shelf cranes with canal profile.

Technical features and options

  • Suitable for manual handling of all materials



Model     Lifting capacity (kg)     Reach     Total Height H     Height under the jib
C 500/3       500      3         3,5        2,83
C 500/4       500      4         3,5        2,83
C 500/5       500      5         3,5        2,83
C 500/6       500      6         4        3,1
C 500/7       500      7         4        3,1
C 500/8       500      8         4        3,1
