CUTTING TABLE BIESSE GENIUS CT - NEXT
CUTTING TABLE BIESSE GENIUS CT - NEXT - Image 2

CUTTING TABLE BIESSE GENIUS CT – NEXT

Categories: ,

Brand: Biesse

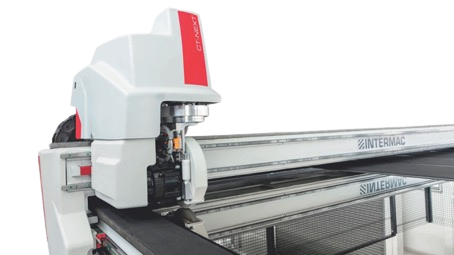

The 3-axis cutting table for flat glass by Intermac was created in response to the demand for a device that can easily and reliably integrate with loading and unloading systems, even from other competing brands.

Technical features and options

TECHNICAL DATA GENIUS 37 CT-NEXT:

  • Machine dimensions: 4800x3400x1980 mm
  • Dimensions with fencing: 4800x4870x1980 mm
  • Min. glass size: 600x500x2 mm
  • Max. glass size: 3710x2750x19 mm
  • Max. axis speed: 200 m/min
  • Max. acceleration: 1G-10 m/sec²
  • Precision of head positioning: 0.15/2000 mm
  • Working table height: 900 mm
  • Machine weight: 2400 kg
  • Electrical cabinet weight: 300 kg
  • Max. installed power: 8.9 kW (9.3 kW in T version)

TECHNICAL DATA GENIUS 61 CT-NEXT:

  • Machine dimensions: 7200x4000x1980 mm
  • Dimensions with fencing: 7200x5400x1980 mm
  • Min. glass size: 600x850x3 mm
  • Max. glass size: 6100x3355x19 mm
  • Max. axis speed: 200 m/min
  • Max. acceleration: 1G-10 m/sec²
  • Precision of head positioning: 0.15/2000 mm
  • Working table height: 900 mm
  • Machine weight: 4000 kg
  • Electrical cabinet weight: 300 kg
  • Max. installed power: 8.9 kW (9.3 kW in T version)
