CUTTING TABLE BIESSE GENIUS CT-RED
Brand: Biesse

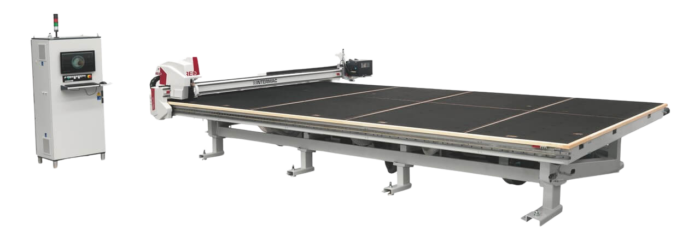

A numerically controlled table with three-axis control, designed for straight-line and profiled cutting of monolithic and special glass surfaces.
Technical features and options

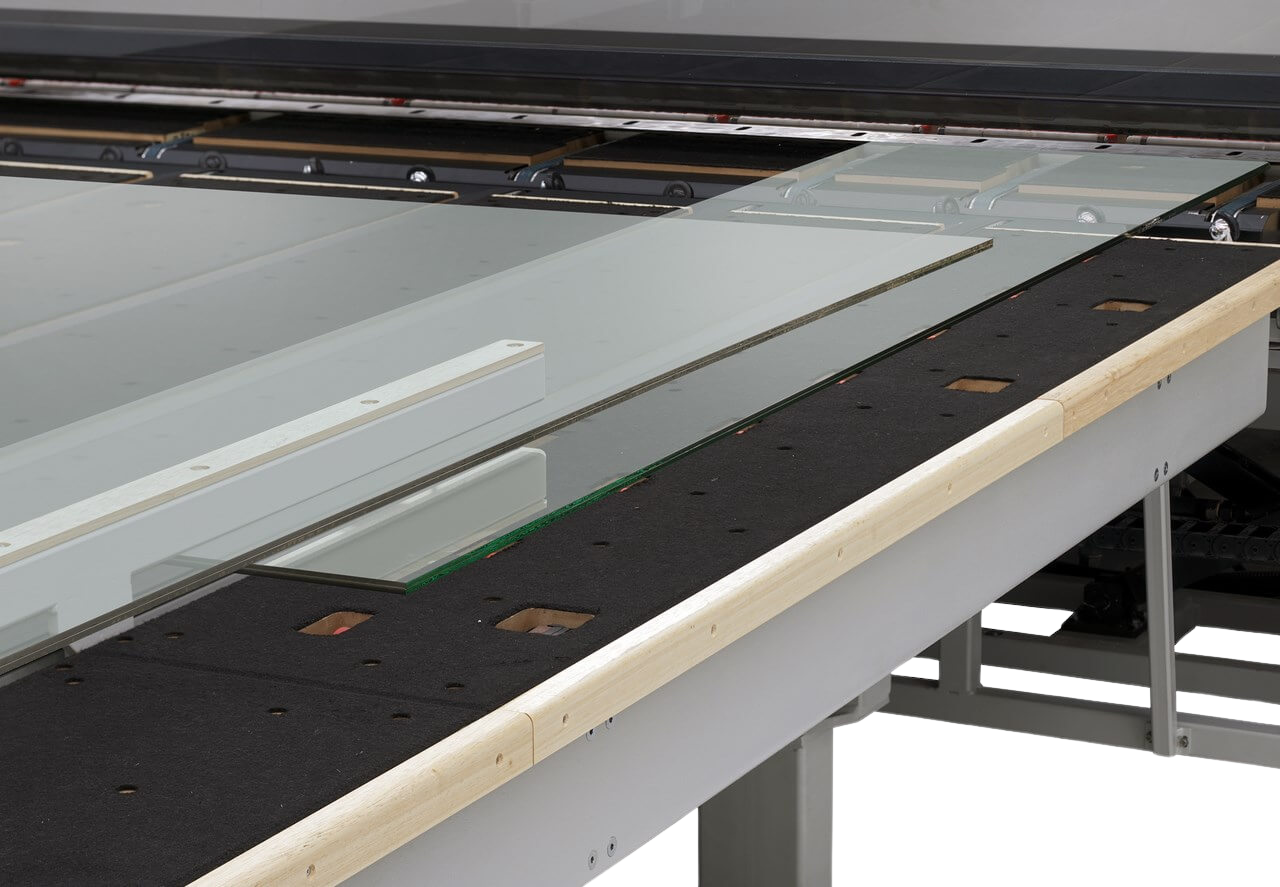

This system includes a work surface covered with low-friction felt, and an air cushion generated by a high-efficiency, low-noise fan, for easy glass handling. Mechanical limiters are integrated with a function for loading and unloading double sheets. A laser scanner is used to measure with a single laser pass, allowing automatic regeneration of profiles and immediate cutting. It detects the ends of profiles without mechanical limiters, for both cutting and trimming, thus reducing cycle time. It also has the feature of double zero positioning for laminated glass cutting.
GENIUS 37 CT-RED TECHNICAL DATA:
- Work surface dimensions: 3710×2760 mm (3810×2750 optional)
- Glass thickness: 2-19 mm (optional up to 25 mm)

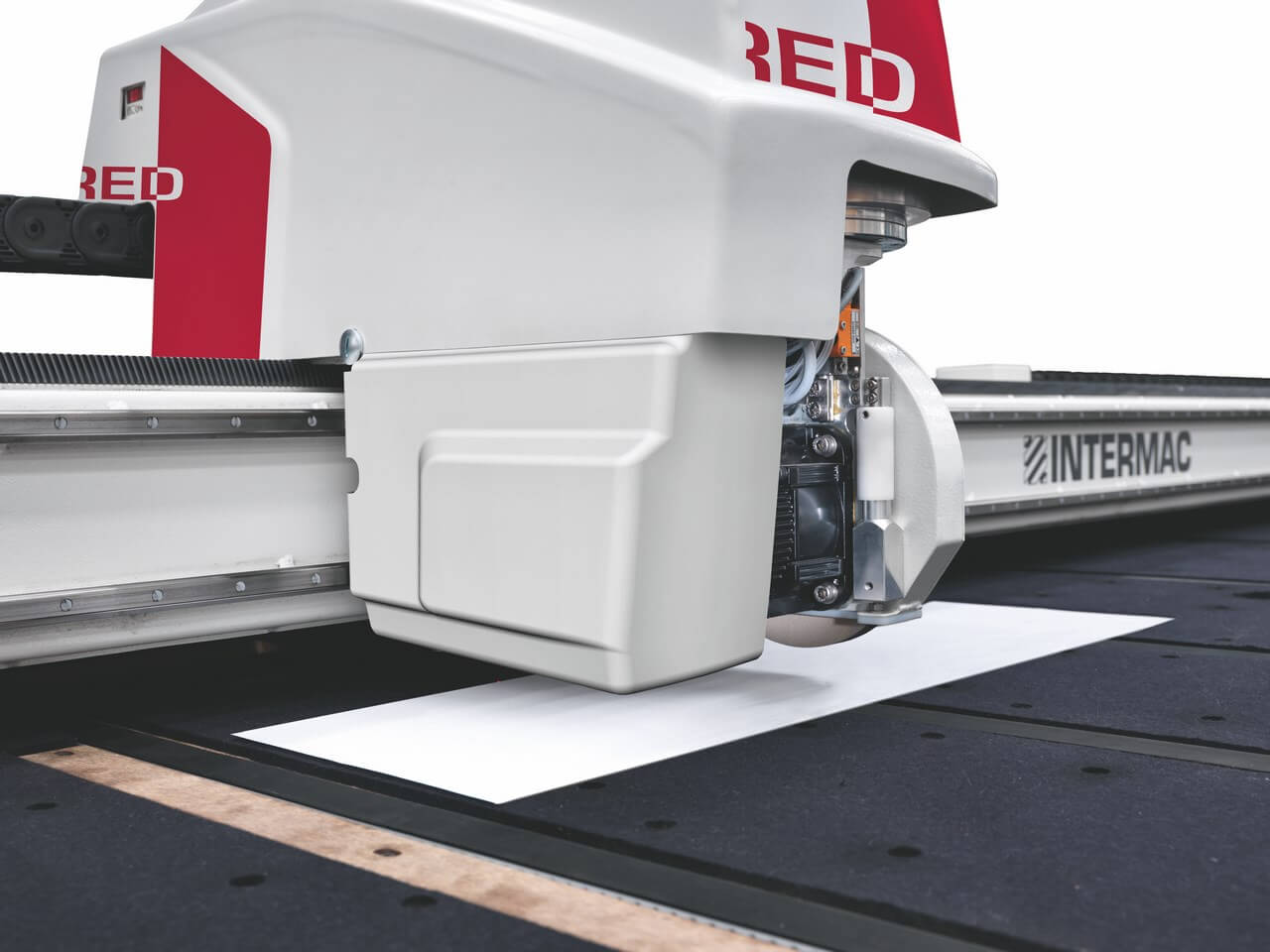

- Cutting head positioning accuracy: +/- 0.15 mm
- Max. cutting speed: 200 m/min
- Acceleration: 10 m/sec²
- Compressed air pressure: 7 bar
- Total weight: 2400 kg
GENIUS 61 CT-RED TECHNICAL DATA:
- Work surface dimensions: 6100×3350 mm
- Glass thickness: 2-19 mm (optional up to 25 mm)
- Cutting head positioning accuracy: +/- 0.15 mm
- Max. cutting speed: 200 m/min
- Acceleration: 10 m/sec²
- Compressed air pressure: 7 bar
- Total weight: 3800 kg
