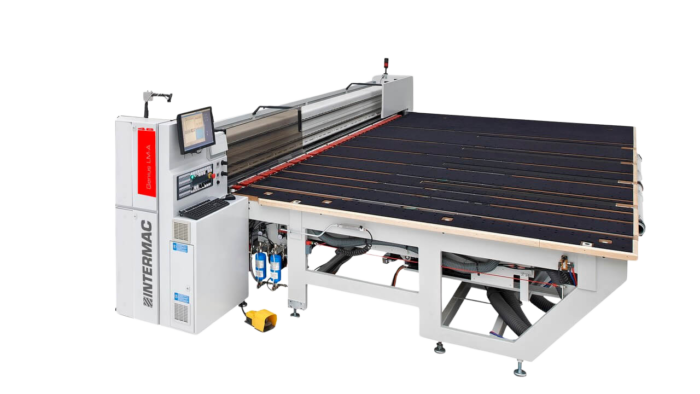

CUTTING TABLE BIESSE INTERMAC CUT UP L B L37 ( GENIUS LM-A )

Versatile, automatic cutting system engineered for seamless laminated glass processing.
It efficiently handles all key operations like scoring, breaking, separation, PVB heating, and cutting, automatically.
With its integrated transport system, buffer zone, and strip rotation capabilities, it ensures fast processing and consistent output, regardless of job complexity or operator expertise.

Smart Buffering
After every X-axis cut, the remaining sheet sections need to be cleared from the cutting line to make room for Y-axis cuts—a process that can be particularly time-consuming for larger sheets.The Intermac Cut Up L B features an innovative vertical buffering system that lifts the remnants, allowing Y cuts to begin immediately while significantly reducing the overall footprint of the machine.When the Y cuts are finished, the buffer lowers the remnants back into position for the next X cuts, eliminating repositioning delays and boosting overall productivity.

Balanced pressure
Since gravity affects the upper and lower cutting heads differently, using the same pressure can result in scoring imbalances that affect cut quality.This machine incorporates dual independent proportional valves for each cutting head, providing accurate control and ensuring consistent, top-quality cuts.

Cutting time, cutting waste
Manual trim cut operations consume valuable time and require skilled operators.
Intermac Cut Up L B automates the process, performing trim cuts as narrow as 20mm, improving efficiency and ensuring consistent production.
The smaller trim cut also helps optimize the layout, improving sheet yield and minimizing waste.

Effortlessly CuttingComplex Shapes

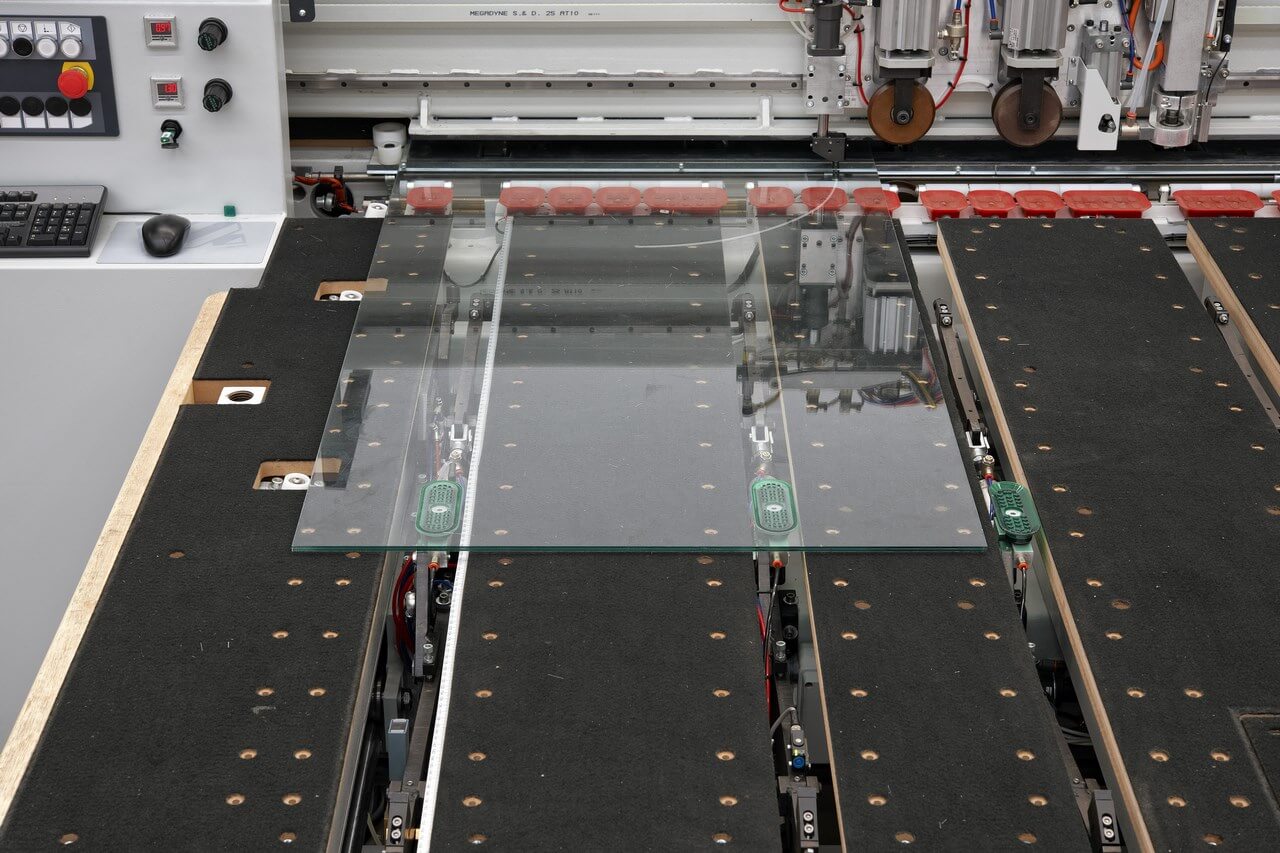

The machine offers advanced capabilities for cutting curvilinear shapes through a sophisticated interpolation of the vacuum cups and cutting head.
A dedicated suction cup with a rotational encoder allows for accurate assisted positioning of diagonal cuts, enabling automatic cutting, breaking, and separation of parallelogram and trapezoid glass shapes.

Laminated Glass
The machine’s primary process starts with scoring using tungsten carbide wheels, followed by glass breakout with integrated breakout bars.
Heating lamps then soften the PVB layer, allowing for automatic separation and precise PVB cutting to complete the process.

Low-E laminated glass
With the TCR unit, the coating layer is automatically removed before the scoring, breaking, and separation phases, enabling fast and efficient processing of low-E glass.
