CUTTING TABLE BIESSE GENIUS LM
CUTTING TABLE BIESSE GENIUS LM - Image 2

CUTTING TABLE BIESSE GENIUS LM

Categories: ,

Brand: Biesse

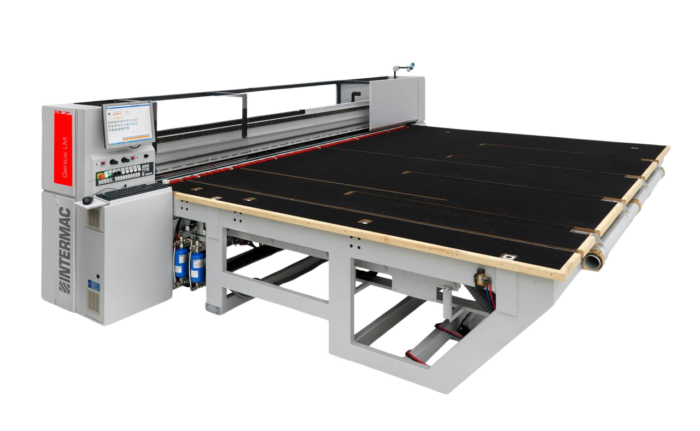

A numerical cutting table with three controlled axes, designed for cutting laminated and monolithic glass. The positioning of the glass for cutting, breaking, and separating is fully automated.

Technical features and options

This is a table used for cutting large amounts of laminated glass, as well as for curved cutting. The machine is managed by the IWNC numerical control, integrated with a PC running Windows.

Additional features to increase efficiency:

  • Conveyor belts on the loading part of the table.

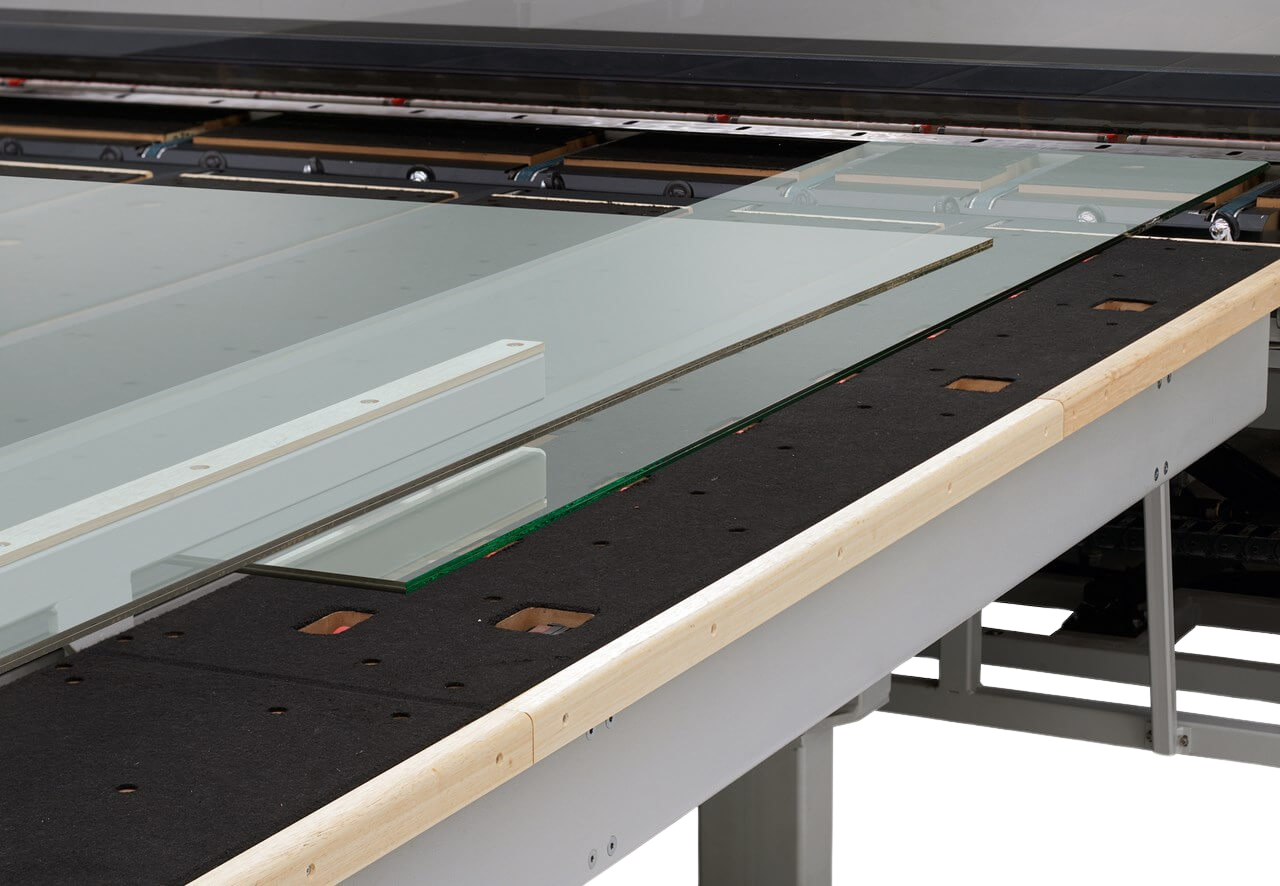

  • A “vertical buffer” installed on the working table to lift cut glass sheets, allowing the remaining part of the sheet to position itself for cuts on the Y-axis.

TECHNICAL DATA GENIUS 37 LM:

  • Max. cutting length: 3710 mm
  • Min. measurement adjustment: 110 mm
  • Max. measurement adjustment: 3210 mm
  • Laminated glass thickness: 33.1-1010.4 mm
  • Monolithic glass thickness: 3-10 mm
  • Min. for breaking: 20-60 mm
  • Min. for separating: 20-60 mm
  • Max. cutting speed: 150 m/min
  • Working table height: approx. 900 mm
  • Required connection power: 16.8 / 22.6 kW
