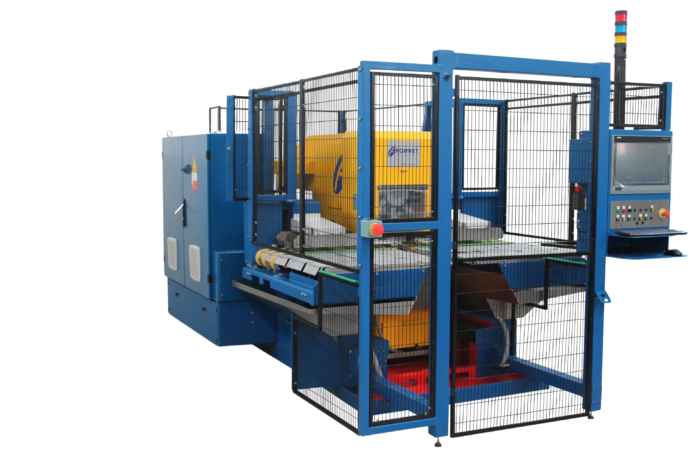

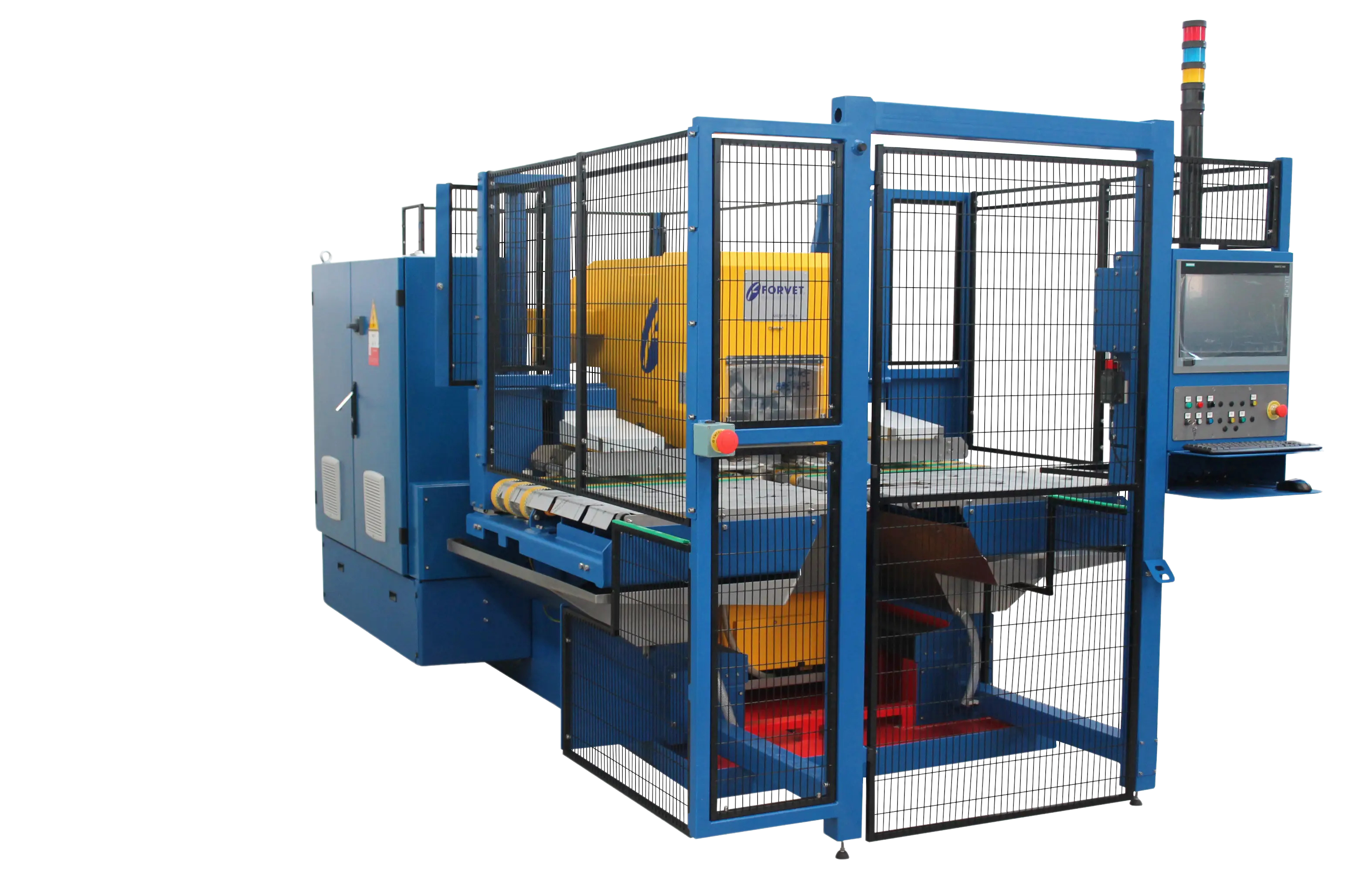

HORIZONTAL DRILLING MACHINE BIESSE INTERMAC DRILL UP B H F ( FRANCESCA 16M 1250 )
ID: 3094
Brand: Biesse
Stock status: in stock
Batch-one NC processing center with automatic glass handling, designed for drilling, milling, and countersinking glass sheets, including irregular or out-of-square pieces.
Technical features and options
- The working cycle is completely automatic, so it does not require any manual intervention.
- The NC optimises the approaching speed of the heads, controls the glass transport feed, drilling speed and water quantity and adjusts the drill height to compensate for its wear. The operator is only required to set the hole diameter and its coordinates.
| Technical Specification | |
| Size 1250 | |
| Max workable glass XY | 1 Conveyor x 1250mm |
| Min workable glass XY | 2 450 x 150mm |
| (220x70mm – Only drilling) | |
| Workable glass thickness | 3 – 19mm (25mm) |
| N° of heads / spindles | 2/8 |
| Max drilling diameter | 65mm (70mm) |
| Low-E processing | No |
| Infeed Conveyor | 1200mm |
| Outfeed Conveyor | 1200mm |
| Infeed / Outfeed Conveyor | Manual (Automatic) |
| Loading mode | Manual (Automatic) |
| Max glass weight | 160Kg |
| 1 | Limited by conveyor’s length |
| 2 | 350mm drilling Only |
| Values within brackets ( ) are optional features |
