HORIZONTAL DRILLING MACHINE BIESSE FRANCESCA FC 32M 3300
HORIZONTAL DRILLING MACHINE BIESSE FRANCESCA FC 32M 3300 - Image 2
HORIZONTAL DRILLING MACHINE BIESSE FRANCESCA FC 32M 3300 - Image 3

HORIZONTAL DRILLING MACHINE BIESSE FRANCESCA FC 32M 3300

Categories: ,

Brand: Biesse

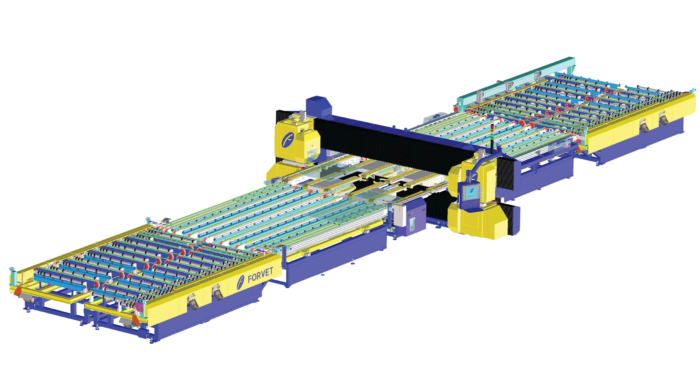

The Francesca FC 32M 3300 Mill is a fully Numerically Controlled (NC) glass working centre, capable of performing drilling, countersinking and milling operations on flat glass sheets, ranging in thickness from 3 to 19 mm. (25 mm optional), including “out of square” pieces.

Technical features and options

  • Francesca FC 3300 Mill can load, work and unload two glass panels simultaneously, without intermediate handling.
  • The maximum useful working field for width is 3300 mm. and without limits for length (according to conveyors sizes).
  • It is possible to operate on this machine either one piece of glass max width. 3300 mm. or two simultaneous pieces of different sizes (within 1600mm width).
  • Alternative minimum glass dimension can be evaluated according to customer needs.

The machine is equipped with four multi-spindles rotating heads (2 upper and 2 bottom each one holding 8 tools) that can operate simultaneously, independently or in conjunction with each other in the full glass width
