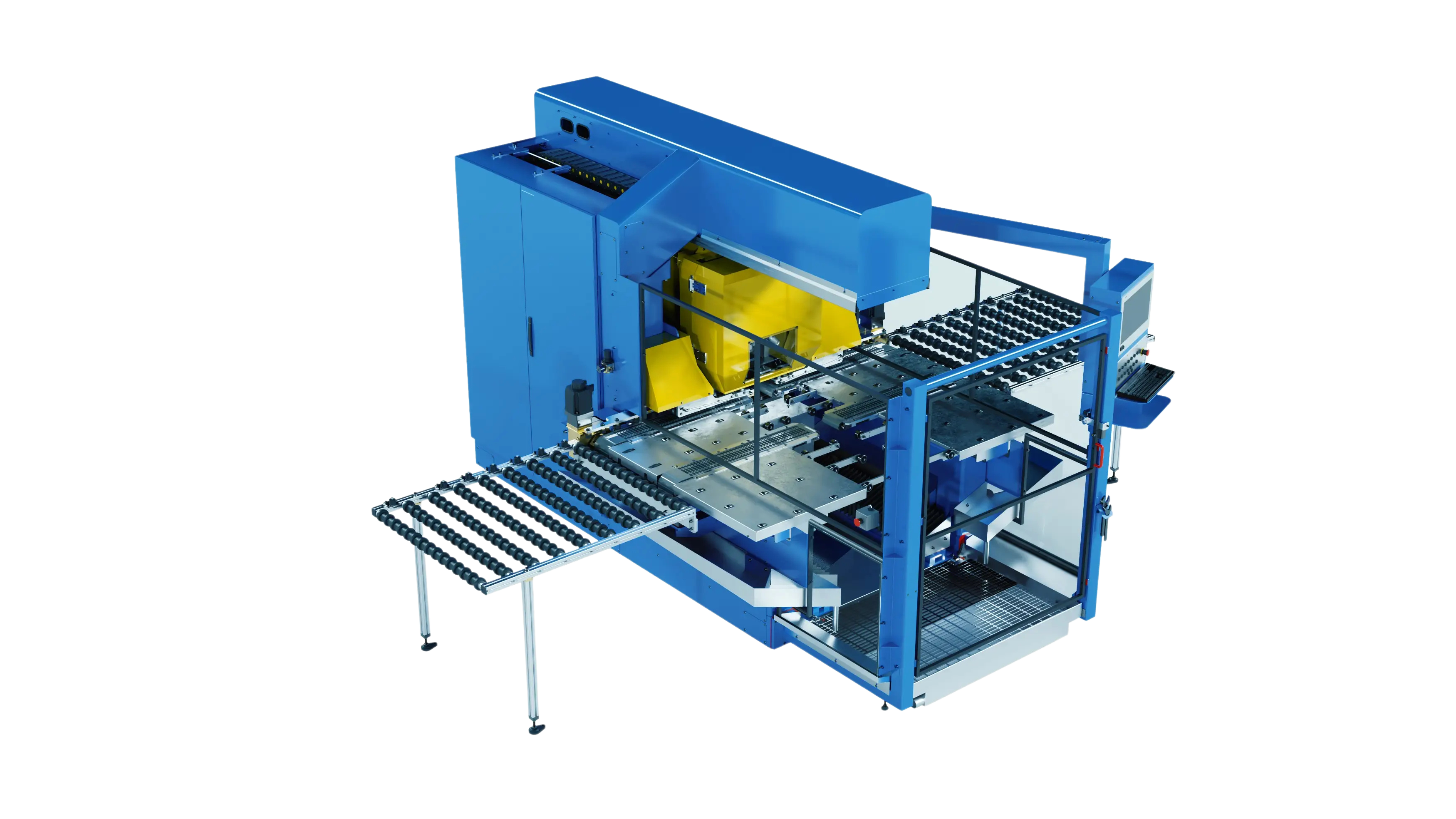

HORIZONTAL DRILLING MACHINE BIESSE INTERMAC DRILL UP B H FP ( FRANCESCA 16M 1600 )
ID: 3228
Brand: Biesse
Stock status: to be ordered
Flexible batch-one NC processing center designed for standard and low-E glass, featuring automatic handling and capable of performing drilling, milling, and countersinking on both straight and out-of-square pieces.
Technical features and options
NC processing centre for drilling, milling and countersinking glass sheets with unprecedented performance and flexibility.
Glass working NC drilling centres capable of performing drilling, countersinking and milling operations on flat glass sheets, including “out of square” pieces.
| Technical Specification | |
| Size 1600 | |
| Max workable glass XY | 1 Conveyor x 1600mm |
| Min workable glass XY | 2 450 x 155mm |
| Workable glass thickness | 3 – 19mm (25mm) |
| N° of heads / spindles | 2/8 |
| Max drilling diameter | 65mm (70mm) |
| Low-E processing | Yes |
| Infeed conveyor | 1200mm |
| Outfeed conveyor | 1200mm |
| Infeed / Outfeed conveyor | Automatic |
| Loading mode | Manual (Automatic) |
| Max glass weight | 230Kg |
| 1 | Limited by conveyor’s length |
| 2 | 350mm drilling Only |
| Values within brackets ( ) are optional features |
