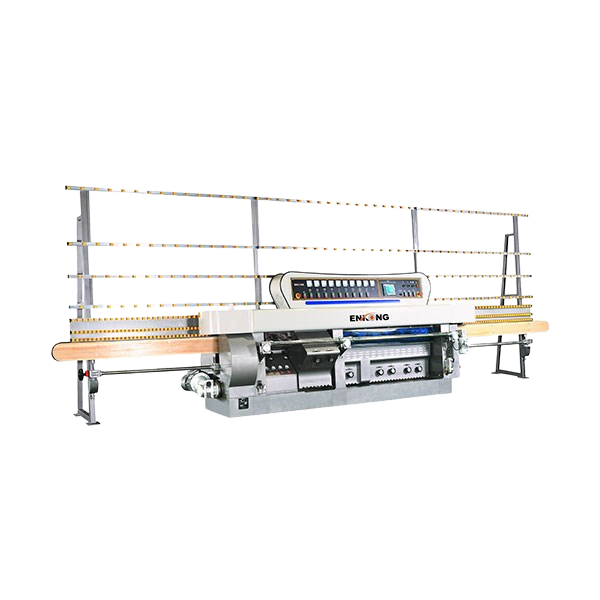

EDGERS ENKONG ZM 9J

EDGERS ENKONG ZM 9J

Categories: ,

Brand: Enkong

A 9-spindle machine designed for processing, including grinding and polishing straight and sharp edges at a 45º angle, as well as beveling glass at angles ranging from 0° to 60°, on glass sheets of various sizes and thicknesses.

Technical features and options

Thanks to the use of a cast iron frame, the machine operates very stably, with vibrations minimized, allowing for high-quality polished surfaces and high productivity. The water tank is made of stainless steel. The loading and unloading times are synchronized. Most electrical components are made by Schneider (manufactured in Germany).

  • Glass working thickness: 3 – 25 mm
  • Sharp edge angle: 0 – 60°
  • Min. glass size for processing: 80 × 80 mm
  • Processing speed: 0.6 – 5.8 m/min
  • Installed power: 23.3 kW
  • Machine dimensions: 7920 × 1400 × 2500 mm
  • Weight: 3,500 kg
