EDGERS HANTECH 4025

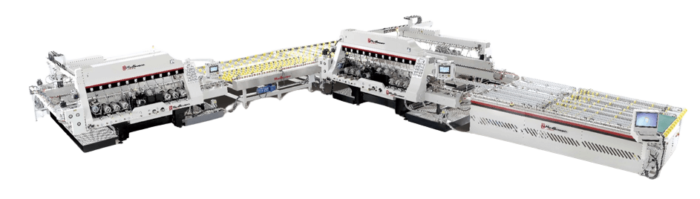

A semi-automatic L-shaped double-edge grinding line with automatic glass size detection.

Technical features and options

Thanks to the automatic glass size detection device, it requires no periodic adjustments. This significantly improves productivity when processing various glass sizes.
The width adjustment requires a highly precise ball screw design, and the size change speed can reach up to 7 m/min, with both speed and precision guaranteed.
The rough grinding speed can reach up to 15 m/min, with productivity being twice as high as in standard double-edge grinders. It features 10-14 spindles on each side and can be equipped with diamond wheels with an automatic compensation and polishing system, ensuring a fully automated production line and better grinding quality.
Thanks to the direct connection function between the cutting machine and washing machine, it enables hands-free, automatic production, which significantly reduces production costs.


The reference size of an “L” type production line
AxB (mm)	6000×3000	5000×2500	4200×2500	3000×2500	2000×3000	1600×2500
X (mm)	9600	9000	9000	9000	9000	8500
Y (mm)	18300	16700	14700	12200	11300	10800
