HORINZONTAL ARRISING MACHINE HANTECH SERIES C

HORINZONTAL ARRISING MACHINE HANTECH SERIES C

Categories: ,

Brand: Hantech

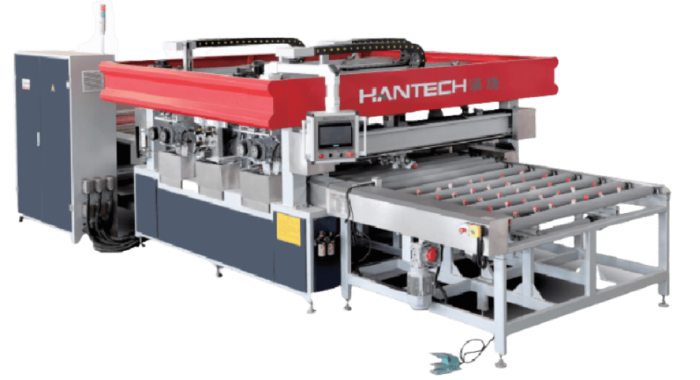

Horizontal glass sharpening machine type C.

Technical features and options

Construction: 3 bridges with 4 grinding heads (Beveling and bottom edge)

Features:

  • Six power transmission sections make the machine more efficient and faster
  • Automatic glass size detection
  • Wheel configuration: 4 grinding geads, each head has 4 diamond wheels for he upper  and lower bevels (optional resin wheels)  =  3 diamond wheels for the bottom edge
  • Thickness range: 4-12 mm (standard 3-8 mm lub 4-12 mm)
  • Speed: Beveling 12-40 m/min
  • The glass dimensions depending on the model:
  1. HSZM16C – 270*600-1600*2500 mm
  2. HSZM20C – 2700*600-2000*3000 mm
  3. HSZM25C – 270*600-2500*3000 mm
