HORIZONTAL WASHER HANTECH HQX
Brand: Hantech

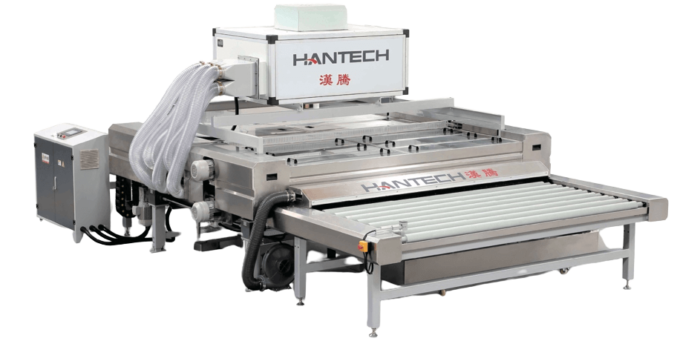

Horizontal flat glass washer for Low-e glass, consisting of a loading section, washing section, drying section, unloading section, as well as a fan and electrical cabinet.
Technical features and options
- The main frame is made of aluminum, which is easy to maintain and ensures a longer lifespan.
- Other panels and parts not in contact with water are powder-coated with high-quality industrial coatings.
- All parts in contact with water are made of stainless steel.
- The maximum lifting height is 350 mm, ensuring convenient maintenance.
- Pre-washing system (two rows of pipes, independent water tank).
- 3 pairs of brushes + 3 pairs of air knives.
- Cone gear transmission, frequency adjustment, digital display, separate drive for upper and lower brushes.
- PLC control and touchscreen display.
| Model | HQX1600 | HQX2000 | HQX2500 |
| Brush and air knife configuration | 3 pairs of brushes (1x top for Low-e), 3 pairs of air knives (2x straight, 1x angled). | ||
| Minimum glass size | 350×350 mm | 350×350 mm | 350×350 mm |
| Glass thickness | 3-19 mm | 3-19 mm | 3-19 mm |
| Speed | 3-15 m/min | 3-15 m/min | 3-15 m/min |
| Maximum lifting height | 400 mm | 400 mm | 400 mm |
| Working height | 860-960 mm | 860-960 mm | 860-960 mm |
| Maximum glass width | 1600 mm | 2000 mm | 2500 mm |
| Weight | 3,6 t | 4 t | 4,5 t |
| Power | 24 kW | 28,5 kW | 32 kW |
| Energy consumption for the water circulation | 0,55 kWx4 | 0,75 kWx4 | 0,75 kWx4 |
| Machine dimensions | 6080x3300x2600 mm | 6240x3700x2600 mm | 6400x4200x2600 mm |
