Technical features and options

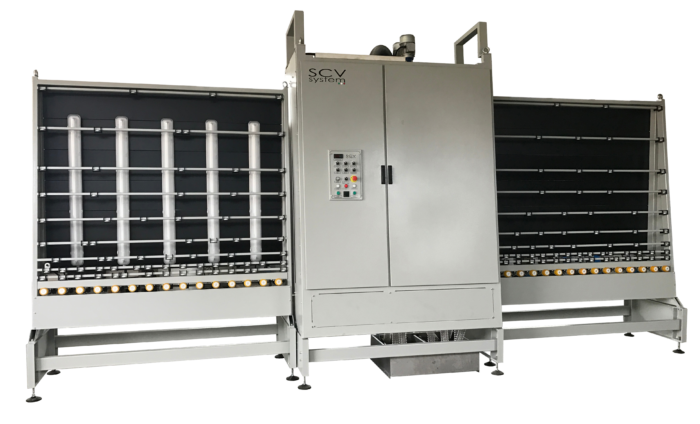

It belongs to the series of vertical washing machines produced by SCV System, designed for washing glass after processing and before storage or shipment to the customer. The machine is designed for intensive use, with special attention given to the selection of materials used for the machine components that are exposed to wear and corrosion.
- Max glass dimensions: 1700 x 3000 mm (height x length)
- Min glass dimensions: 170 x 400 mm (height x length)
- Glass thickness: from 3 – 12 mm
- Total installed power: 21.5 kW
- Dimensions: 8000 mm (length) x 2400 mm (width) x 2800 mm (height)
- Working height: 580 – 620 mm
- Weight: 1,570 kg
- Working speed: 6 m/min
