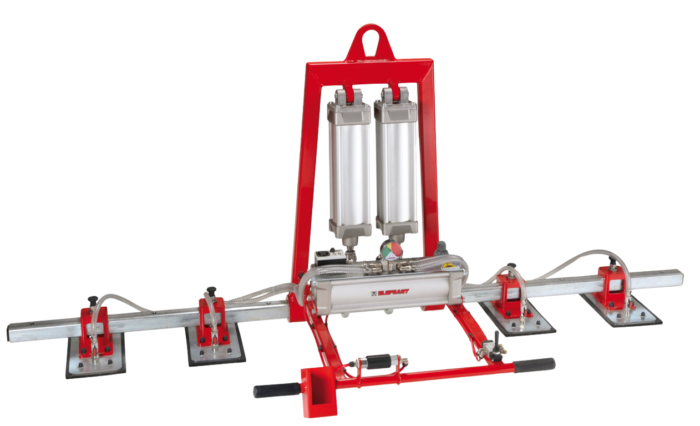

VACUUM MANIPULATOR ELEPHANT TOP 4RP

Pneumatic vacuum lifter with 4 suction cups, ideal for handling kitchen countertops.

Technical features and options

Structure with 0°-90° pneumatic tilting which allows to work more easily;
Continuous vacuum pump powered by compressed air;
Vacuum gauge with graduated and coloured scale to more easily monitor the degree of vacuum;
Powerful and quiet vacuum generator with reduced air consumption of 100 lt/min;
Operating pressure 4/6 Bar;
Gaskets made of rubberized fabric and mousse suitable for smooth, flammed and bush-hammered surfaces;
High-limit yielding steel suction pads made of first quality materials;
Possibility of excluding the pads by means of a tap;
No-falling non-return valve for vacuum;
Sliding valve to control gripping and releasing of the material with safety block against involuntary manoeuvres;
Ample safety tank in aluminium for vacuum reserve, to guarantee gripping even when there is a power cut and with condensation discharge valve;
Acoustic and visual alarm system which automatically signals a low vacuum degree. It works autonomously by means of rechargeable batteries and it is supplied with the appropriate battery charger at 220 volt.
