Technical features and options

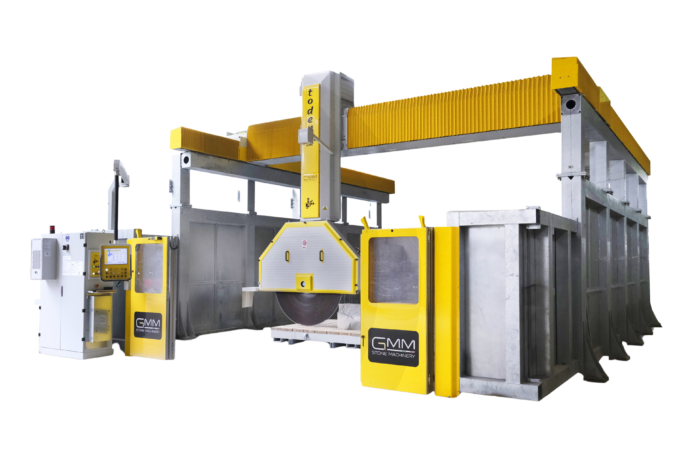

Machine suitable for repetitive machining and single parts production, with vertical or inclined cuts (OPTIONAL), parallel, orthogonal, diagonal and curved, by the orientation of the head and the interpolation of rapid and controlled movements axis on recirculating ball guides.
• Blade diameter 1400-2200 / 80 mm Disk spindle gear reducer 44-56KW Optional
• Main machine structures made of electro-welded steel carpentry, hot dip galvanized and stabilized to ensure perfect dimensional stability and durability.
• Blade cover in stainless steel with coating in sound-absorbent material.
• All the movement axes are managed by brushless motors with absolute encoder which keeps the axis positions memorized even in the absence of power supply and does not require a reset cycle at each machine start-up.
• Cutting / return movement of the blade-holder slide (X axis) and translation of the bridge (Y axis) are driven by a zero-play precision helical pinion-rack meshing on hardened guides with recirculating ball skates.
• Vertical ascent / descent movement of the operating head (Z axis) on ram with recirculating ball guides and ball screw.
• Pendant pushbutton panel in stainless steel, with USB port and 15 “LED colour touchscreen display with double function of control panel and operator interface;
• Articulated support arm to allow the operator to approach the table during work preparation;
• Connectable to a company LAN for production control 4.0 Ready, for transfer file directly to the machine, to view the operation of the saw remotely and for online assistance.
• Operator interface, based on Microsoft Windows operating system and entirely developed by GMM, allows you to take full advantage of the potential of the numerical control and to
program processes in a simple and intuitive way.
• The basic software and inclined cuts (OPTIONAL) in interpolation and also in increments, single and multiple cuts, orthogonal cuts.
Among the accessories on request, program extensions are also available to tackle more complex processes.
