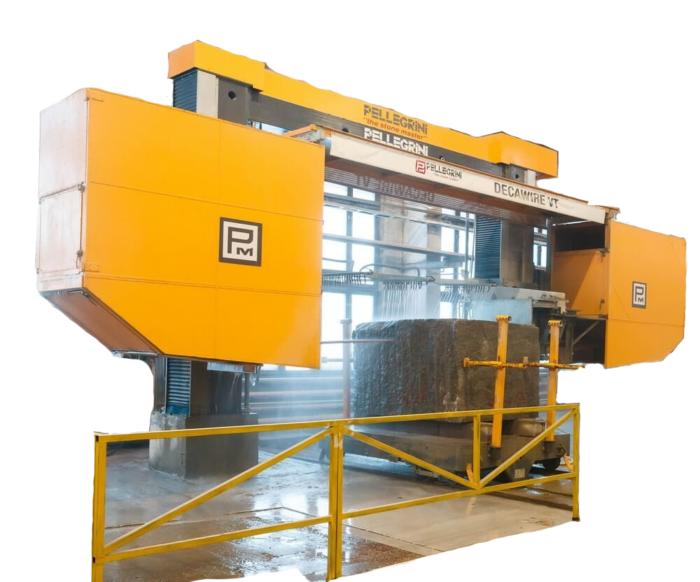

BLOCK CUTTING PELLEGRINI DECAWIRE VT
Brand: Pellegrini
Multiline saw with a motor drum with a diameter of 2.35 m on the drive side and ten single flywheels with a diameter of 2 m on the tensioning side, as well as an easy-to-adjust plate thickness system "E.A.S.T." and a guide drum with a diameter of 0.8 m on the flywheel side. The solid construction, made up of two vertical rectangular columns with high resistance to bending and twisting, and an interchangeable flywheel module, ensures high stiffness and maximum precision.
Technical features and options
- Max number of ropes: 10
- Motor power for rope drive: 45 kW
- Motor power for lifting and lowering: 7.5 kW
- Electrical power supply: 400 V / 50 Hz
- Flywheel diameter: 2 m
- Drum diameter: 2.35 m
- Guide drum diameter: 0.8 m
- Cutting usable width: 3.5 m
- Cutting usable height: 2.1 m
- Variable linear rope speed: from 0 to 40 m/s, controlled by inverter.
Diamond Rope Length:
- 24.3 m (full)
- 24.1 m (joined)
Plate thicknesses dependent on the number of installed ropes:
- 2 ropes: 21 – 1001 mm
- 3 ropes: 21 – 491 mm
- 4 ropes: 21 – 321 mm
- 5 ropes: 21 – 241 mm
- 6 ropes: 21 – 191 mm
- 7 ropes: 21 – 151 mm
- 8 ropes: 21 – 131 mm
- 9 ropes: 21 – 111 mm
- 10 ropes: 21 – 101 mm
Also available in ROLLER version.
