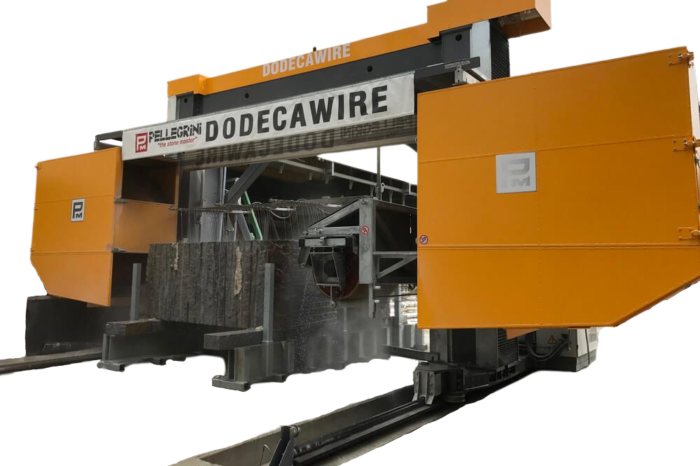

BLOCK CUTTING PELLEGRINI DODECAWIRE VT
Brand: Pellegrini
Multiline machine with a large motor drum with a diameter of 2.35 m on the drive side and twelve large independent flywheels with a diameter of 2 m. Equipped with the easy plate thickness adjustment system E.A.S.T. The installation ends with a guide drum with a diameter of 0.8 m on the tensioning side. The solid construction, consisting of two vertical rectangular columns with high resistance to bending and twisting, ensures high stiffness and maximum precision.
Technical features and options
- Max. number of ropes: 12
- Variable linear rope speed: from 0 to 40 m/s, controlled by an inverter.
- Diamond rope length (each): 24.1 m
- Motor power for rope drive: 45 kW
- Motor power for lifting and lowering: 7.5 kW
- Flywheel diameter: 2 m
- Drum diameter: 2.35 m
- Guide drum diameter: 0.8 m
- Usable cutting width: 3.5 m
- Usable cutting height: 2.1 m
Plate thicknesses dependent on the number of installed ropes:
- 2 ropes: 21 – 1001 mm
- 3 ropes: 21 – 491 mm
- 4 ropes: 21 – 321 mm
- 5 ropes: 21 – 241 mm
- 6 ropes: 21 – 191 mm
- 7 ropes: 21 – 151 mm
- 8 ropes: 21 – 131 mm
- 9 ropes: 21 – 111 mm
- 10 ropes: 21 – 101 mm
- 11 ropes: 21 – 91 mm
- 12 ropes: 21 – 81 mm
Also available in the mobile ROLLER version.
