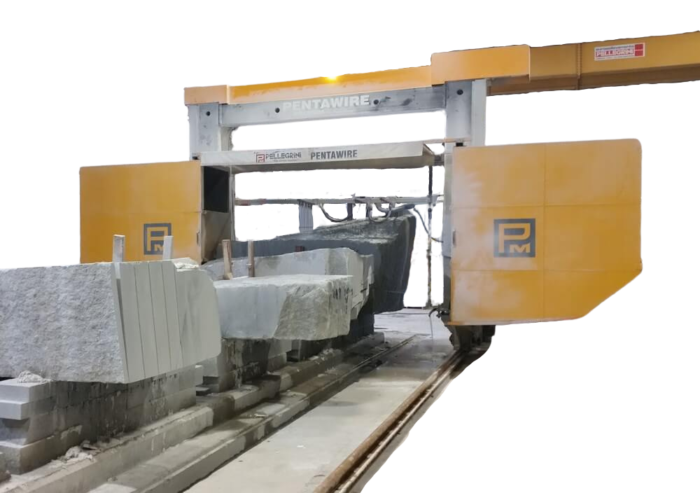

BLOCK CUTTING PELLEGRINI PENTAWIRE AT ROLLER
Brand: Pellegrini
Multiline machine designed for cutting "thick" slabs from granite blocks. The machine allows for simultaneous cutting of slabs with five diamond ropes of varying thicknesses. The rope tensioning wheels can be positioned every 1 cm, enabling the cutting of slabs with thicknesses ranging from 21 mm to 151 mm. Depending on the number of installed ropes and the thickness of the remaining slabs, it is possible to achieve thicker slabs than 151 mm, even up to 610 mm (when only two ropes are installed).
Technical features and options
- Max number of ropes: 5
- Motor power for rope drive: 30 kW
- Motor power for lifting and lowering: 7.5 kW
- Electrical supply: 400 V / 50 Hz
- Flywheel diameter: 2.35 m
- Usable cutting width: 3.5 m
- Usable cutting height: 2.1 m
- Variable linear rope speed: from 0 to 40 m/s, controlled by an inverter.
Diamond rope length:
- 21 m (full)
- 21.2 m (joined)
Plate thicknesses dependent on the number of installed ropes (8.3 mm rope):
- 2 ropes: 21 – 611 mm
- 3 ropes: 21 – 301 mm
- 4 ropes: 21 – 191 mm
- 5 ropes: 21 – 141 mm
Also available in the mobile ROLLER version.
