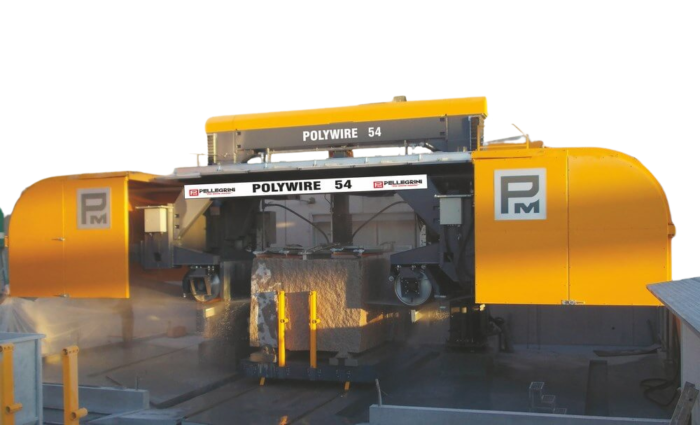

BLOCK CUTTING PELLEGRINI POLYWIRE 54
Brand: Pellegrini
Multiline saw with the ability to mount up to 54 diamond ropes, driven by a motor drum with a diameter of 2 m. It is possible to use ropes with diameters of 6.3 or 7.3 mm. The patented MULTIPULL system allows for individual rope tensioning through separate flywheels.
Technical features and options
- Max number of ropes: 54
- Electrical supply: 400 V / 50 Hz
- Motor power for rope drive: 200 kW
- Linear rope speed: from 0 to 40 m/s
- Motor power for lifting: 7.5 kW
- Adjustable lowering speed: 0-300 cm/h
- Drum diameter: 2 m
- Guide drum diameter: 0.6 m
- Usable cutting width: 3.5 m
- Usable cutting height: 2.1 m
- Rope length: 27.6 m
Plate thicknesses dependent on the number of installed ropes (7.3 mm rope):
- 54 ropes: 21 mm
- 40 ropes: 21-31 mm
- 32 ropes: 21-41 mm
