BLOCK CUTTING PELLEGRINI POLYWIRE 5S

BLOCK CUTTING PELLEGRINI POLYWIRE 5S

Categories: ,

Brand: Pellegrini

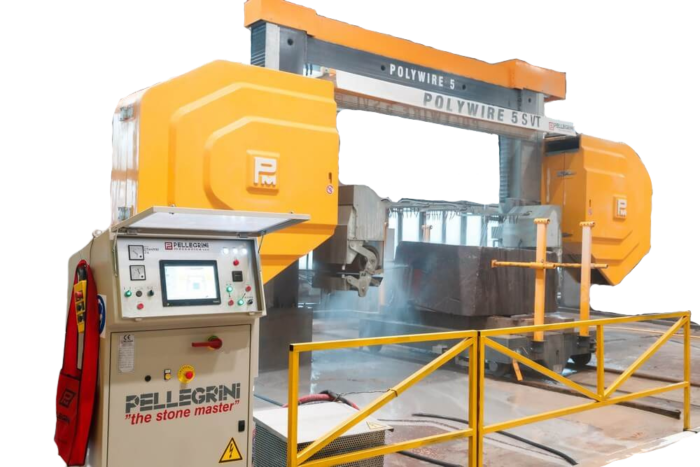

Machine with a motor drum on the drive side and five single flywheels on the tensioning side. Equipped with the easy plate thickness adjustment system "E.A.S.T" and guide drums. The solid construction, consisting of two vertical rectangular columns with high resistance to bending and twisting, ensures high stiffness and maximum precision.

Technical features and options

  • Max number of ropes: 10
  • Motor power for rope drive: 30 kW
  • Motor power for lifting and lowering: 7.5 kW
  • Electrical supply: 400 V / 50 Hz
  • Flywheel diameter: 2.35 m
  • Usable cutting width: 3.5 m
  • Usable cutting height: 2.1 m
  • Variable linear rope speed: from 0 to 40 m/s, controlled by an inverter.

Diamond rope length:

  • 24.1 m (full)
  • 24.3 m (connected)

Plate thicknesses dependent on the number of installed ropes:

  • 2 ropes: 21 – 611 mm
  • 3 ropes: 21 – 301 mm
  • 4 ropes: 21 – 191 mm
  • 5 ropes: 21 – 141 mm
