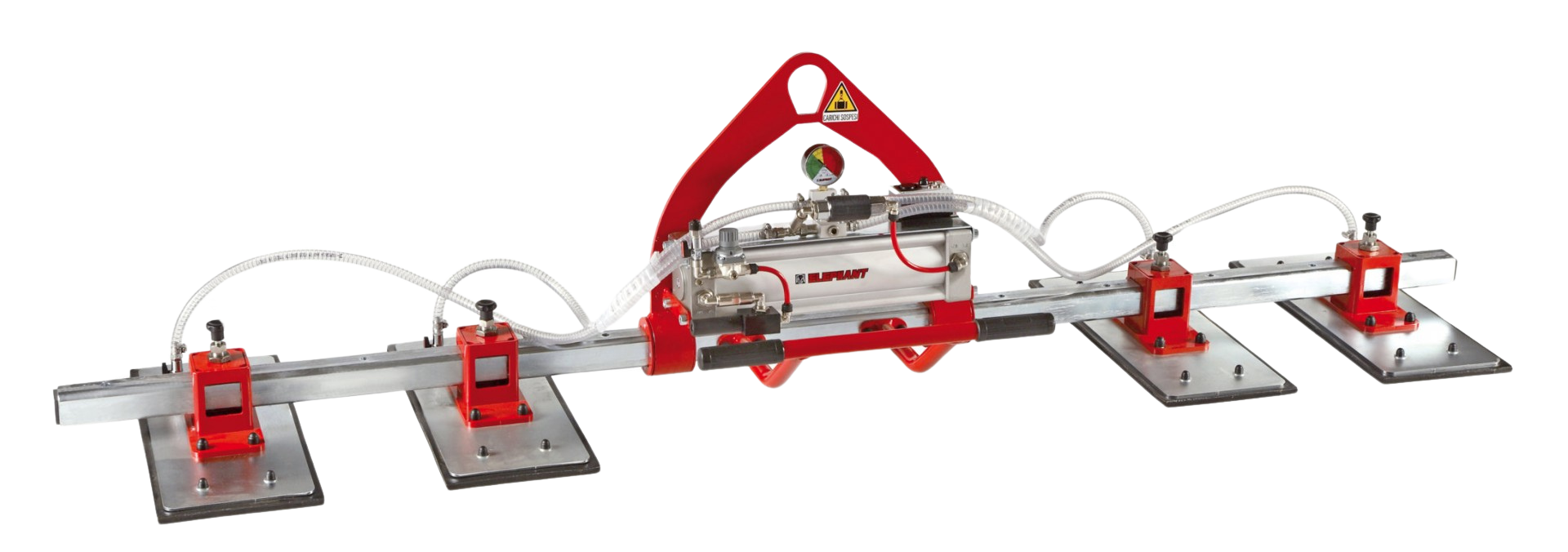

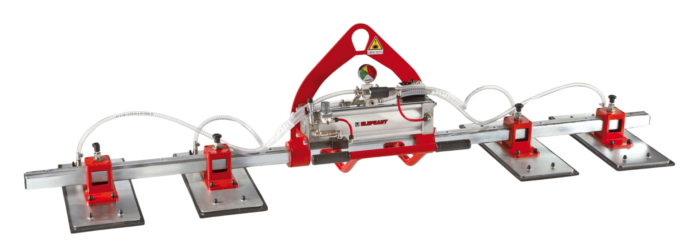

VACUUM MANIPULATOR ELEPHANT 4RL
Brand: Elephant
Pneumatic vacuum lifter with 4 suction cups arranged in a line, suitable for handling large or delicate items.
Technical features and options
Structure with 0° to 90° manual tilting able to block in horizontal position;
Continuous vacuum pump powered by compressed air;
Vacuum gauge with graduated and coloured scale to more easily monitor the degree of vacuum;
Powerful and quiet vacuum generators with reduced air consumption of 100 lt/min;
Operating pressure 4/6 Bar;
Gaskets made of rubberized fabric and mousse suitable for smooth, flammed and bush-hammered surfaces;
High-limit yielding steel suction pads made of first quality materials;
No-falling non-return valve for vacuum;
Sliding valve to control gripping and releasing of the material with safety block against involuntary manoeuvres;
Ample safety tank in aluminium for vacuum reserve, to guarantee gripping even when there is a power cut and with condensation discharge valve;
Acoustic and visual alarm system which automatically signals a low vacuum degree. It works autonomously by means of rechargeable batteries and it is supplied with the appropriate battery charger at 220 volt;
Manoeuvring handle for the operator.
