VACUUM MANIPULATOR ELEPHANT F-250/6 + KQ3SD/1S + PNT2F
VACUUM MANIPULATOR ELEPHANT F-250/6 + KQ3SD/1S + PNT2F - Image 2
VACUUM MANIPULATOR ELEPHANT F-250/6 + KQ3SD/1S + PNT2F - Image 3
VACUUM MANIPULATOR ELEPHANT F-250/6 + KQ3SD/1S + PNT2F - Image 4
VACUUM MANIPULATOR ELEPHANT F-250/6 + KQ3SD/1S + PNT2F - Image 5

VACUUM MANIPULATOR ELEPHANT F-250/6 + KQ3SD/1S + PNT2F

Categories: ,

Brand: Elephant

The device allows the lifting of furniture boards, worktops

Technical features and options

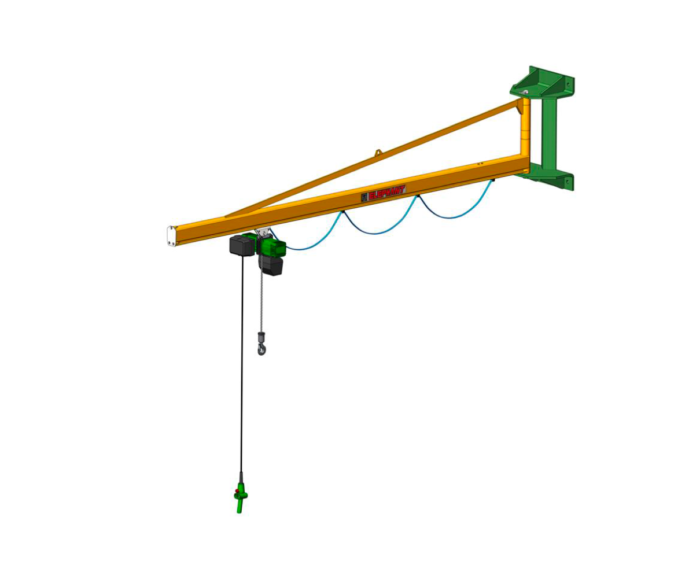

Type F-250/6

  • Load capacity 250 kg
  • Arm length 6 m
  • Column 420 x 300 mm
  • Manual trolley included
  • Rotation angle 240°

Manually moved electric winch

Type: KQ3SD/1S

  • Load capacity: 250 kg
  • Lifting speed*: 10/1.7 m/min
  • Power supply – control panel: 24 V
  • Power supply: 380 V / 50 Hz
  • Hook displacement: 3 m
  • Winch power: 0.5 kW

Vacuum lifter for translucent panels

Model PNT2F

  • Lifting capacity: 200 kg
  • 2 suction cups, 500×200 mm
