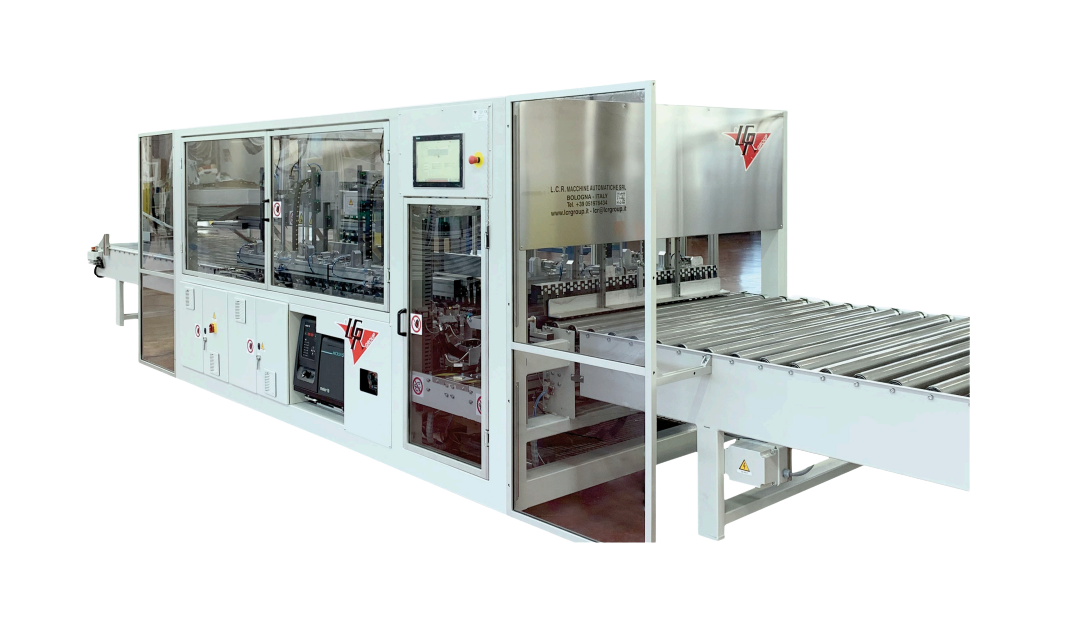

CARTON SEALING MACHINE LCR FLEXPACK FEFCO 410
Brand: LCR
Automatic closing machine for cardoard boxes. Machine able to work in packing lines with automatic, palletizing, stacking unit.
Technical features and options
Product dimensions:
- Length (x) min. 400 mm – max. 2500 mm
- Width (y) min. 250 mm – max. 1000 mm
- Height (z) min. 30 mm – max. 200 mm
- Cardboard type: Fefco 0410 or Fefco 0421-1
Cartons requirements/quality of the cardboard:
- Cardboard type: FEFCO 0410
- Tolerance of semi-finished product dimensions: +/- 2 mm
- Tolerance of creasing: +/- 2 mm
- Tolerance of die/blank position: +/- 2 mm
- Angular tolerance (right angle between length and width): max. 0.05 degrees
- Warping: max. +/- 15 mm
- Cutting: yes
- Cardboard thickness: 3.2 mm (B) or 4 mm (BE)
- Working height of the line: 850 mm +/- 50 mm.
