PALLET WRAPPING MACHINE HORBITEK GALAXY

Categories: ,

Brand: Horbitek

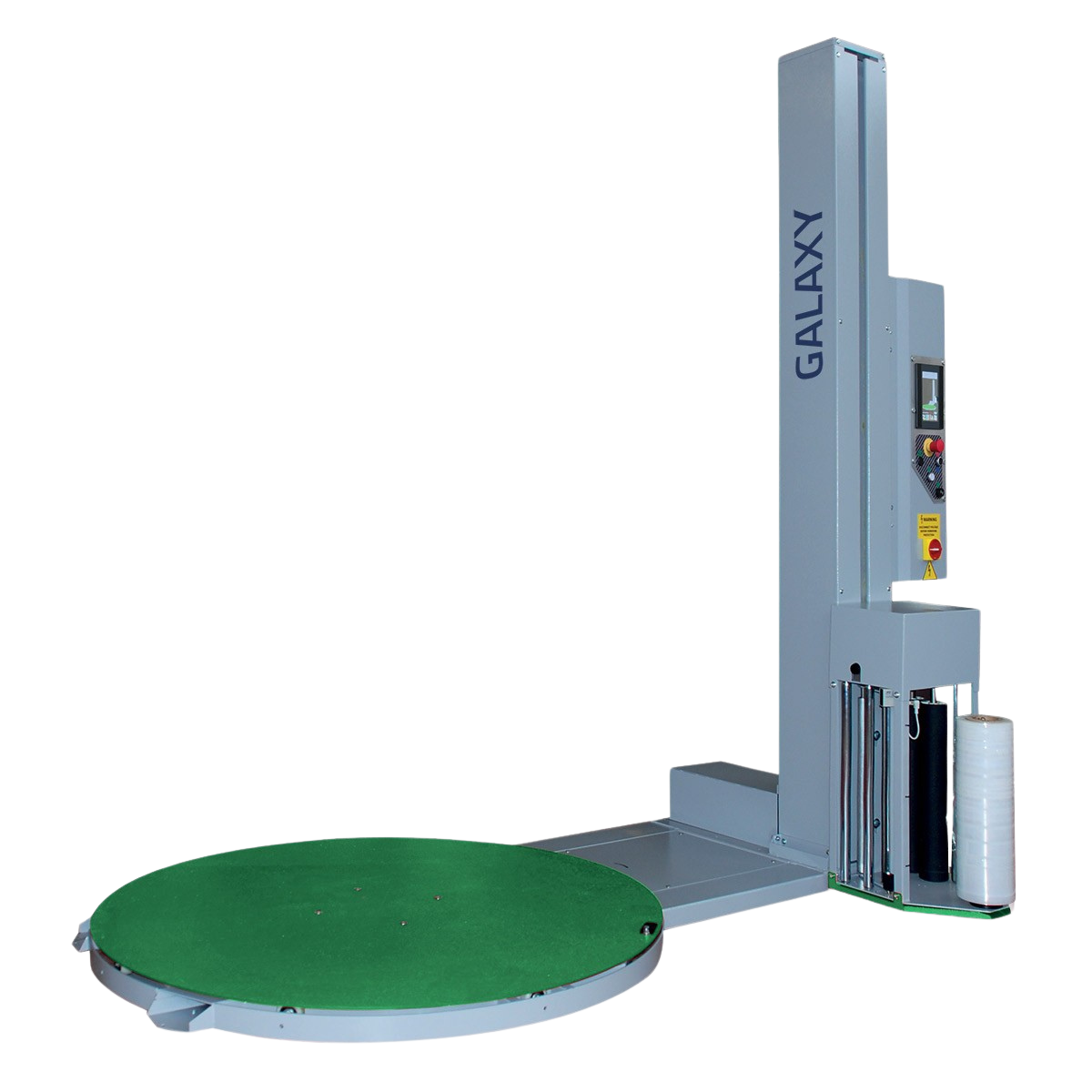

Semi-automatic turntable machine for stretch film pallet wrapping. High technology and reliability. Designed to solve any packaging requirement.

Technical features and options

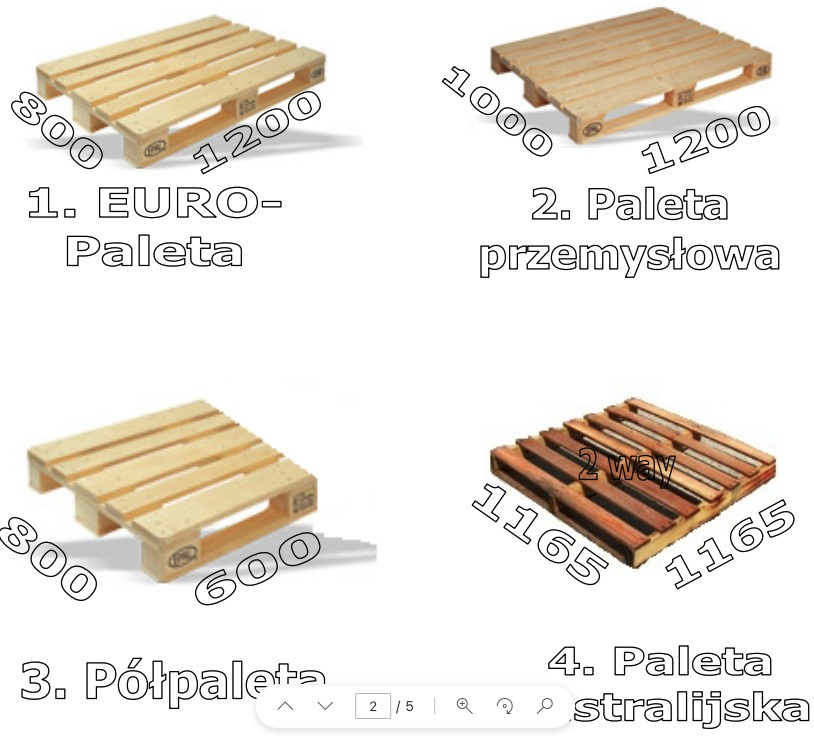

  • Length (min-max): 600 – 1200 mm
  • Width (loading side) (min-max): 600 – 800 mm
  • Minimum and Maximum Loading Height (including pallet): 600 – 2000 mm (pallet 120 mm)
  • Minimum and Maximum Loading Weight: 70 – 2000 kg
  • Maximum Load Sag: 20 mm
  • Maximum Protrusion of the Load: 20 mm
  • Profile Height Above Transport: 120 mm
  • Rotary Table Diameter: 1500 mm
  • Power Supply: 220V 1 Ph + N + Gr (1.1 Kw)
  • Color of Solid Elements: RAL 7040, Color of Moving Parts: RAL 6037
  • Rotation Speed: 10 rpm

Film specifications:

  • Material: 100% LLDPE
  • Thickness: 10 – 27 microns
  • Roll Weight: Max 20 kg, 500mm tape
  • Inner Diameter: 50-76 mm
  • Roll Outer Diameter: Max 300 mm
  • Pre stretch (Optional): 50 – 400%

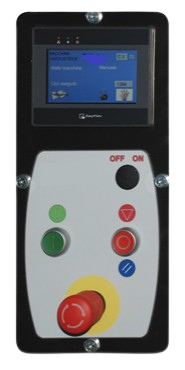

Easy operation thanks to the intuitive display with program selection options such as:

Partial top and bottom packing, full top and bottom packing, manual movement, pallet height setting without photocell, top protection wrapping, heavy-duty packing with preset position, starting packing at a preset height, parameter protection via password, and the ability to store 98 custom user programs.

Adjustment of parameters such as:

Table rotation speed, trolley up/down speed, number of wraps from the bottom, number of wraps on top, number of reinforced wraps, height setting, packing start height, photocell delay for pallet protrusion, and setting for the upper protective layer.


The machine is equipped with a safety device:

Emergency button compliant with applicable CE standards, machine reset button compliant with applicable CE standards, emergency and safety button on the foil feeding system.
