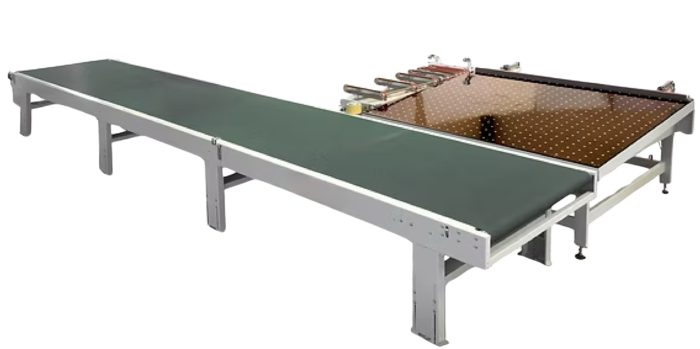

RETURN CONVEYOR FOR EDGEBANDER
Brand:
Return conveyor for edgebander made of an air table, equipped with pusher, returning conveyor with motorized belt and roller conveyor for piece collection. The panel comes out of the edgebanding machine onto the air table, which by tilting, makes it slide, using the pusher, on the returning belt, placed at a lower working level.
Technical features and options
- Motorized belts to extract pieces (adjustable speed with inverter)
- Air table
- Air supply electric fan 1.1 kW
- Pneumatic lateral pusher with 2 cylinders
- Gummed idle roller for the long panel rotation from the cross position to the longitudinal one
- Long abrasion-proof return belt
- Return belt width: 1300 mm (working at fixed conveying speed)
- Idle roller conveyor for piece collection. Dimensions: 1300 (roller width) x1240x800(H) mm
- Rollers’ diameter 50 mm + PVC coating
- Rollers’ pitch 60 mm
- Equipped with vertical nets according to safety regulations.
- Working direction: left
- Equipped with lateral support with idler wheels for long panels, fixed to the belt conveyor with brackets
- Equipped with electric panel with PLC logic and proper inverter
- Dimension handled elements: min – max
– Length 150-2800 (mm)
– Width 50-1000 (mm)
– Thickness 10-60 (mm)
– Weight 1-70 (kg)
