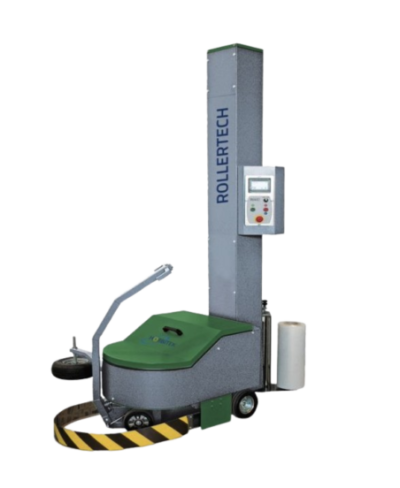

MOBILE PALLET WRAPPING MACHINE HORBITEK ROLLERTECH-E
Brand: Horbitek
Mobile stretch film wrapping machine. Indispensable when it is not possible to transfer the pallet with the material to other packaging machines. The machine is equipped with an AGM battery.
Technical features and options
- Charging with 220 V single-phase current
- Possibility to store up to 99 programs Touch screen
- Roll inner diameter 60-76 mm
- Power 1.1 kW

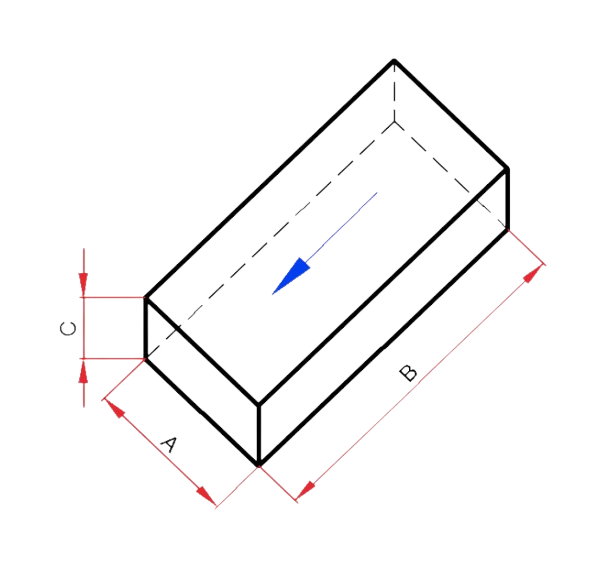

- Length “B” (min-max) mm, 600 – ∞
- Width “A” (min-max) mm, 600 – ∞
- Min and max loading height “C” (min-max) mm, 600 – 2000
- Max load overhang (relative to the pallet) mm 20
- Max. load shift value inwards (relative to the pallet) mm 20
- Min. load weight kg 60
- Loading to wrap – PALLET
- Autonomous operation on 85 + 85 Ah 24 VDC battery
- Pallets/day 150
- 220V battery power supply
- Installed power 1.1 KW
- The color of the permanent components is Ral 7040
- The color of the moving components is Ral 6037
- Wrapping speed km/h 1.8 – 4.0
Mod trolley PME – The machine is equipped with a trolley with a unit for pre-stretching the foil. System with gears and rollers for pre-stretching the film when unwinding it. standard value
pre-stretching up to 150% (possibility of pre-stretching in the range of 50%-200%). The movable electronically controlled roller controls the unwinding of the film by adjusting the speed of the motor.
