VACCUM MANIPULATOR ELEPHANT B250/5+250W14F+TV2
ID: 6101
Brand: Elephant
Stock status: in stock
The lifting system equipped with a hoist and a vacuum lifter with a 200 kg capacity. It features a 5-meter arm, 270° rotation, and a reliable vacuum system for safe and efficient handling of heavy or flat materials.
Technical features and options
COLUMN
Type: B-250/5
Lifting capacity: 250 kg
Arm length: 5 m
Column height: 3.50 m
Height under arm: 2.83 m
Hook height: 2.33 m
Manual trolley included
Rotation angle: 270°

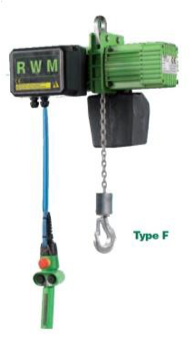

HOIST
Type: 250W14F
Lifting capacity: 250 kg
Lifting speed*: 1.4 m/min
Control power supply: 24 V
Main power supply: 380 V, 50 Hz
Hook travel: 3 m
VACUUM LIFTER
Type: TV2
Lifting capacity: 200 kg
Suction cups: 2 pcs., 700×160 mm (external dimensions 720×180 mm)
Air consumption: 250 l/min
Working pressure: 6/7 bar
