CNC NESTING MACHINE NANXING NCG3021LE
Brand: Nanxing
The NCG3021LE machining center is fully equipped to load, process and unload finished panels.
Technical features and options

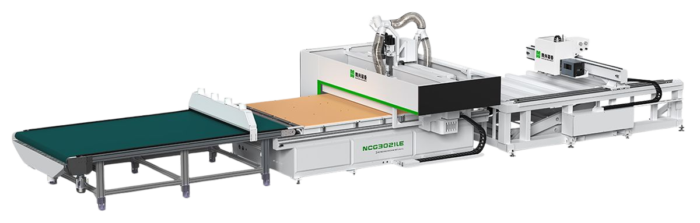

Nesting machining center with loading and unloading NANXING NCG3021LE
- X = 3100 mm,
- Y = 2100 mm,
- Z = 200 mm,
- Work table dimensions: 3100x2100x(H)900 mm.
The NCG3021LE machining center is fully equipped to load, process and unload finished panels. Contains:
- Loading plates with a labeling device,
- Machining with a 12 kW spindle and drill head. Milling, grooving and drilling are possible,
- Work table: 3000 mm x 2100 mm. Compatible with 2440 x 1220 mm, 2440 x 1830 mm,
- The maximum speed along the X and Y direction is 100 m/min,
- SYNTEC system. PC control with Windows 7 operating system with high stability and ease of use,
- Fully automatic production including 3 parts: automatic loading with labeling, CNC machining center and automatic unloading of elements.
